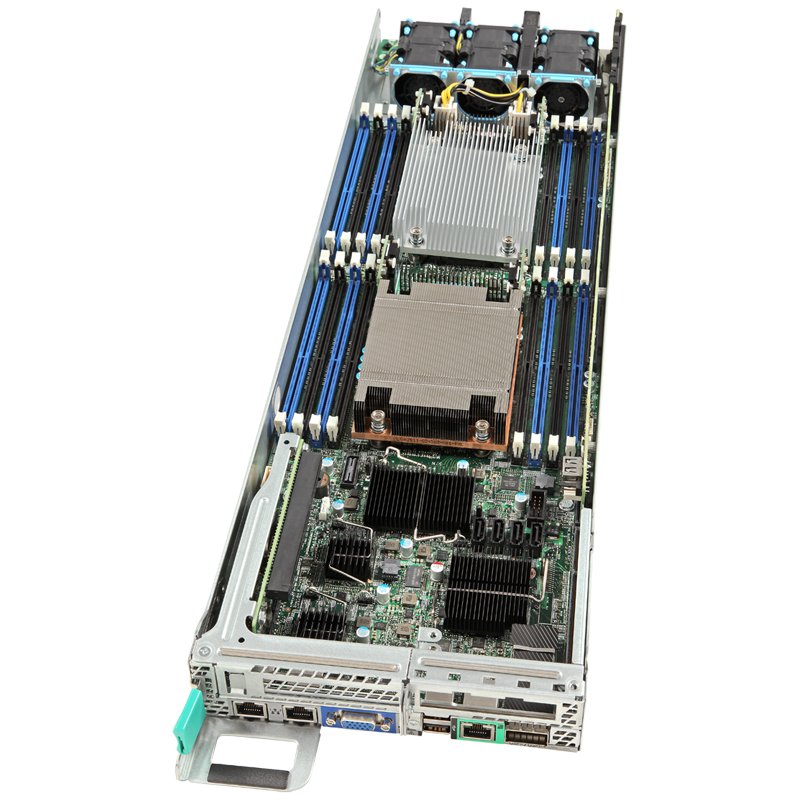

Intel Compute Module HNS2600TPR, Single

Chipset: Intel C612
CPU Socket Standard: Socket 2011-3
Supports Central Processor Unit: Intel Xeon E5-2600v4 Series
CPU Maximum Quantity Supports: 2
Memory Type: DDR4 SDRAM
Provides Error Checking Method: ECC
Memory Speed: 2400MHz(PC4-19200)
2133MHz(PC4-17000)
1866MHz(PC4-14900)
1600MHz(PC4-12800)
Memory Form Factor: DIMM 288-pin
Maximum Installable System Memory Storage Capacity: 1024 GB
Memory Slot Total Quantity: 16
Memory Features: Eight DDR Channels
Storage Controller Type: RAID
SATA III
SATA Controller Interface Type: Serial ATA III/600
Supports RAID Level: Level 5
LAN Integrated: yes
PCI Express 3.0 x16 Slot Quantity: 1
LAN: 2 (RJ-45)
SATA III: 10
VGA: 1 (15-pin DB)
USB2.0: 4 (4-pin USB (type A))
Form Factor: Proprietary
Width (mm): 172.2 mm
Depth (mm): 480 mm
Package Type: Retail
Warranty Products returnable: Yes
Warranty Term (month): 36 month(s)
Warranty validation Criteria: Serial Number
Pack Weight Brutto (kg): 5 kg
Pieces in pack: 1
Packs in Box: 1
