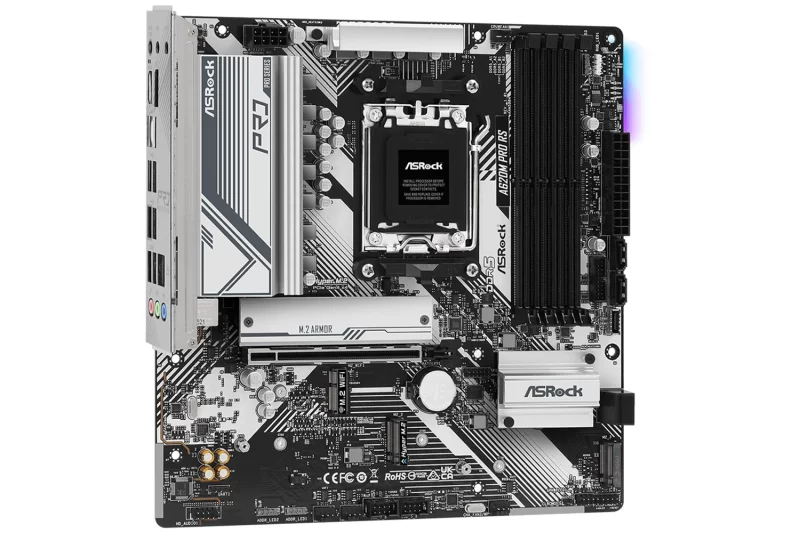

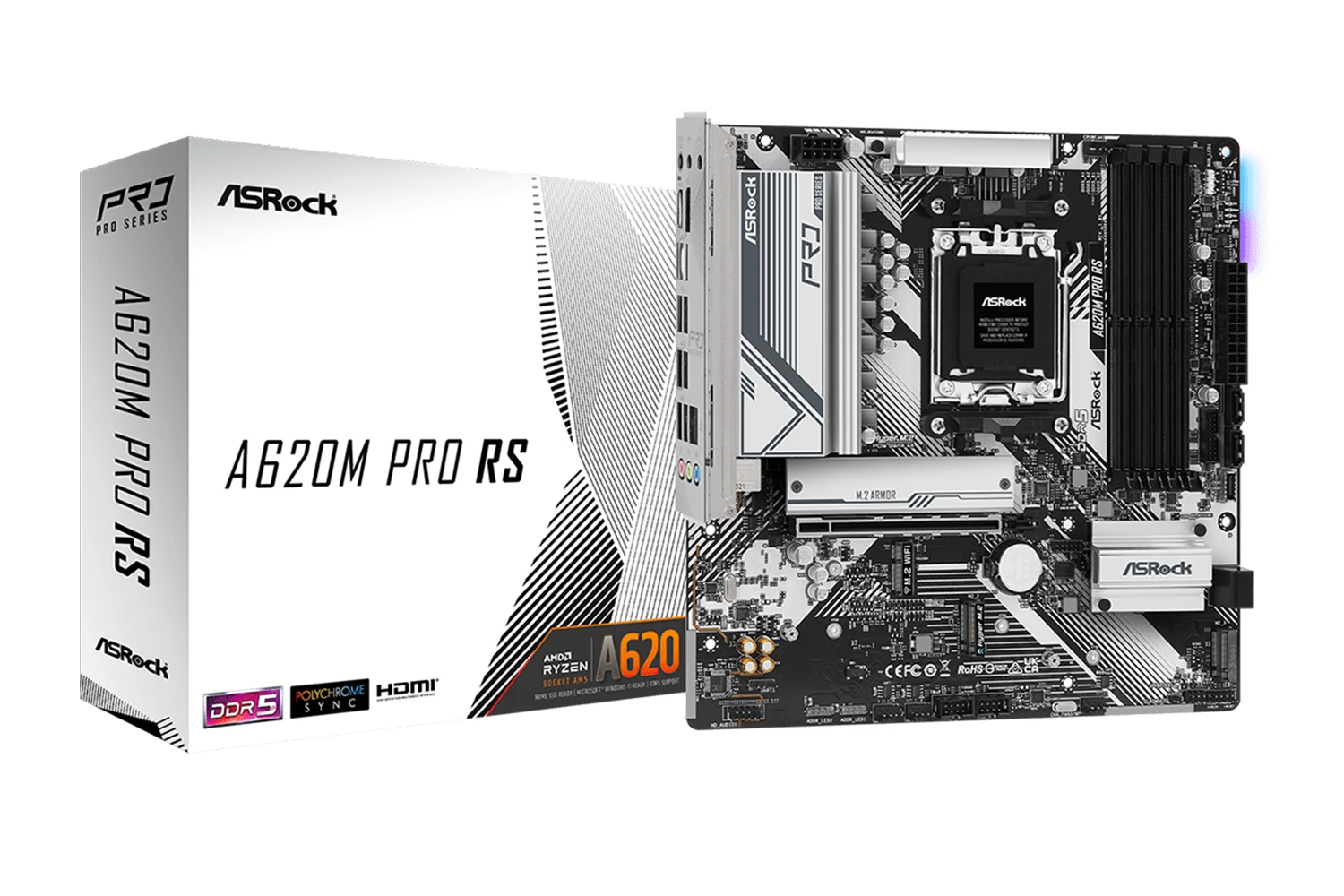

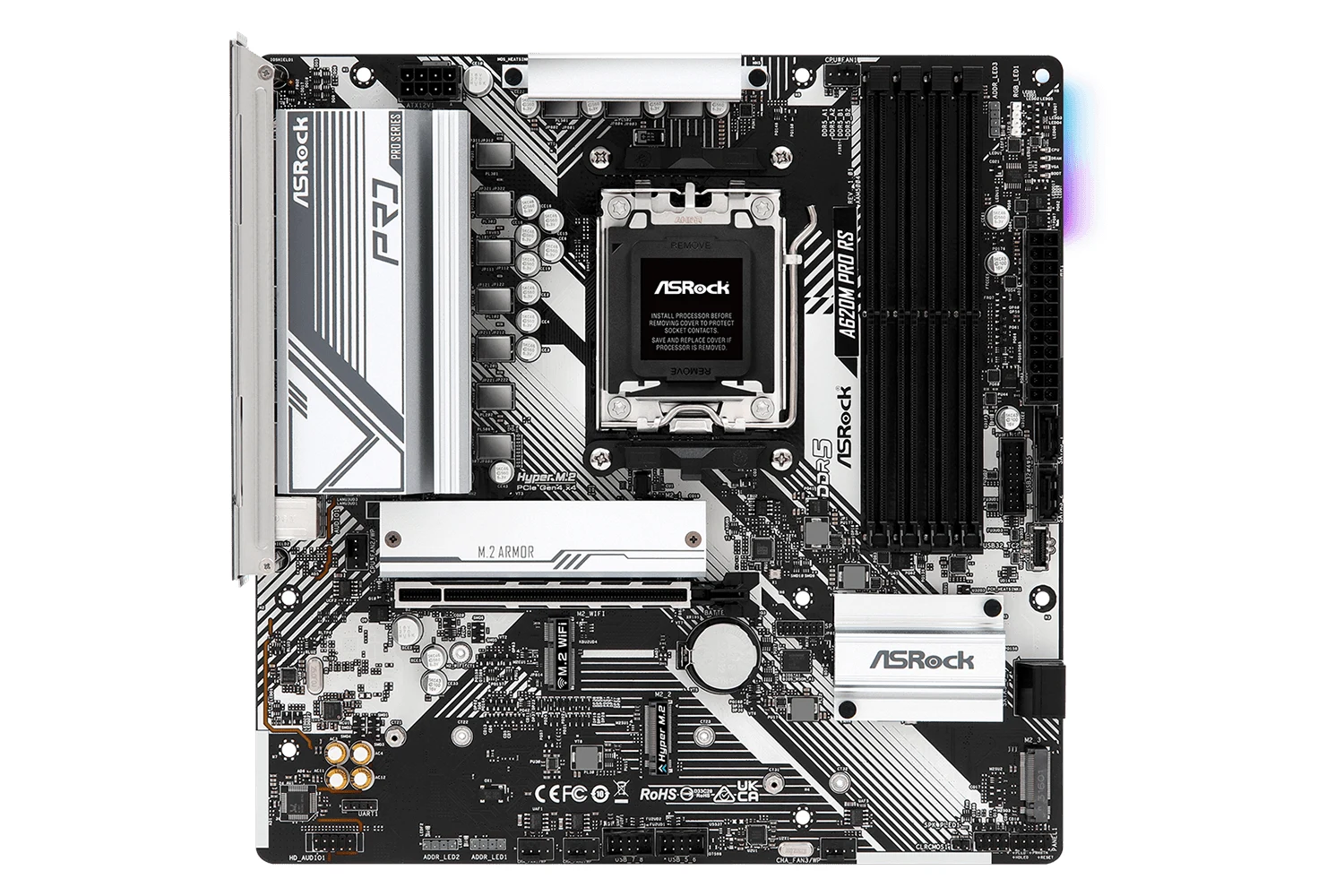

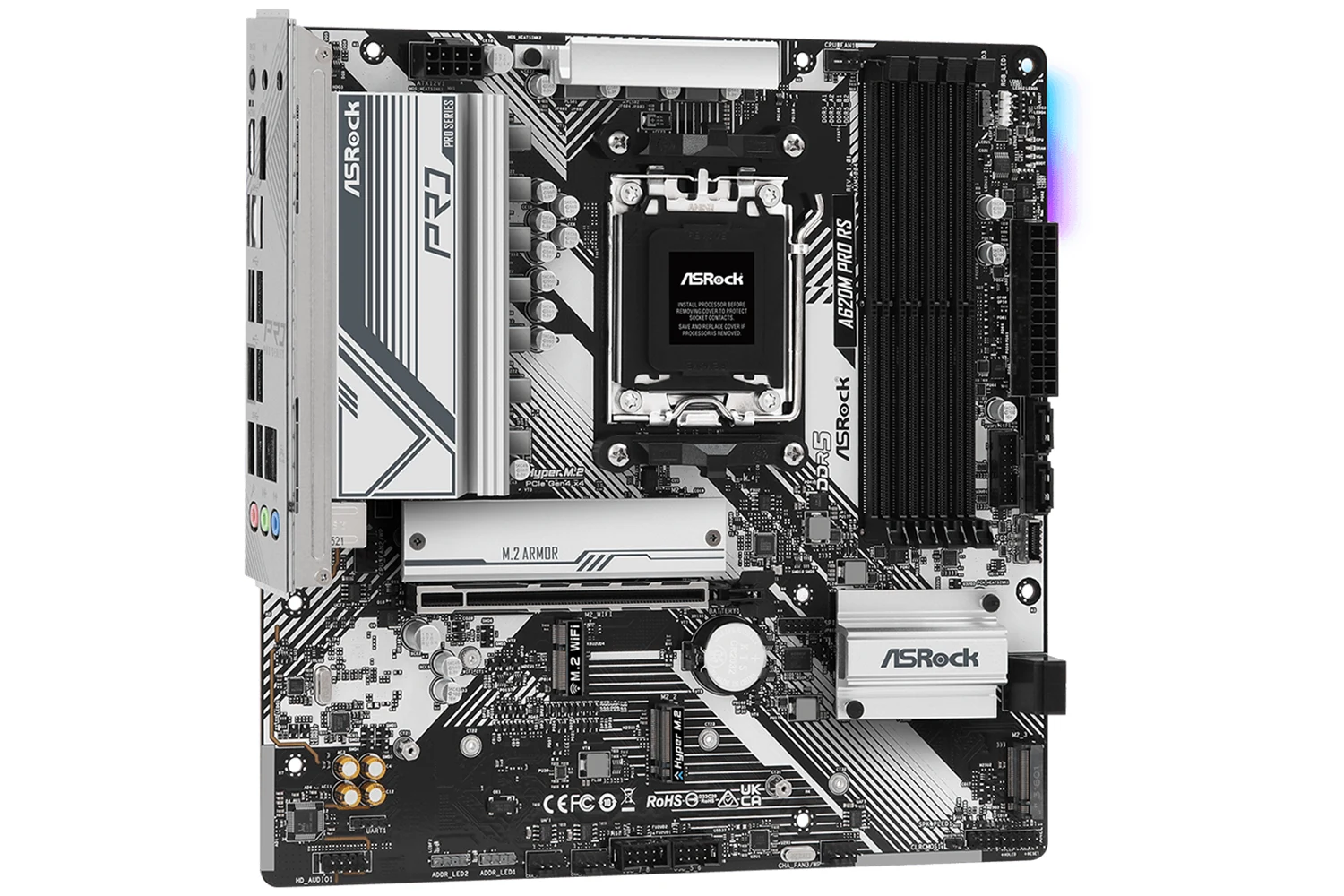

ASRock A620M PRO RS, matična ploča

CPU
Supports AMD Socket AM5 Ryzen™ 7000 Series Processors*

Chipset
AMD A620

Memory
– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)
– Max. capacity of system memory: 192GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS
256Mb AMI UEFI Legal BIOS with GUI support

Graphics
Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio

LAN
– Gigabit LAN 10/100/1000 Mb/s
– Realtek 8111H

Slots
CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
* Chipset:
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
* Supports NVMe SSD as boot disks
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Storage
CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
* Chipset:
– 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x2 (16 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks

RAID
– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
** Requires additional M.2 NVMe expansion cards to support RAID 10

USB
– 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
– 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
– 8 x USB 2.0 (4 Rear, 4 Front)
* All USB ports support ESD Protection

Connector
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header* Supports in total up to 12V/3A, 36W LED Strip** Support in total up to 5V/3A, 15W LED Strip*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).*
**** CHA_FAN1~3/WP support the fan power up to 2A (24W).*
**** CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

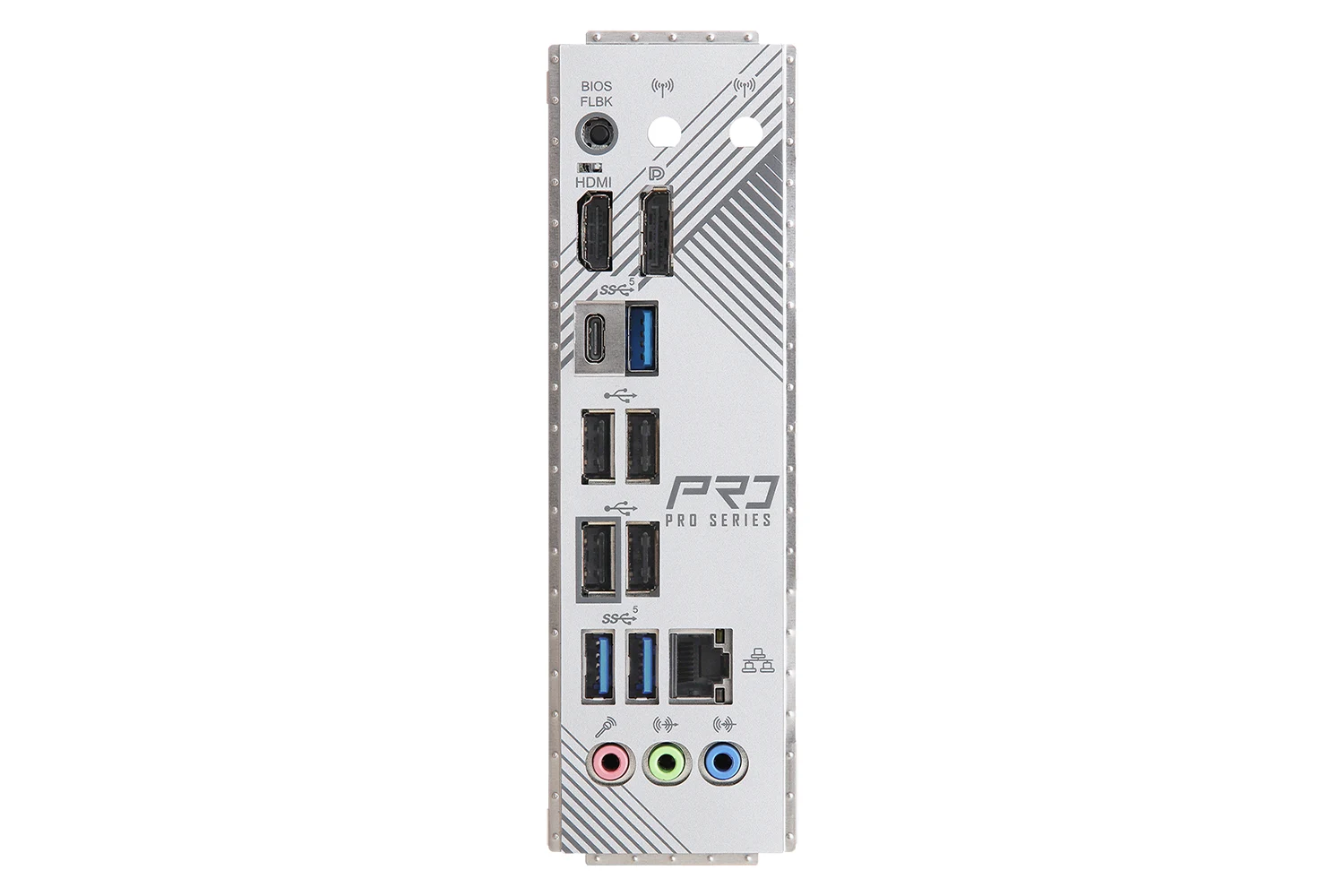

Rear Panel I/O
– 2 x Antenna Mounting Points
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 3 x USB 3.2 Gen1 Type-A Ports
– 1 x USB 3.2 Gen1 Type-C Port
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC
– ASRock XFast LAN
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

Accessories
– 1 x User Manual
– 2 x SATA Data Cables
– 4 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket

Form Factor
– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

OS
– Microsoft® Windows® 10 64-bit / 11 64-bit

JAMSTVO: 24 mjeseca
