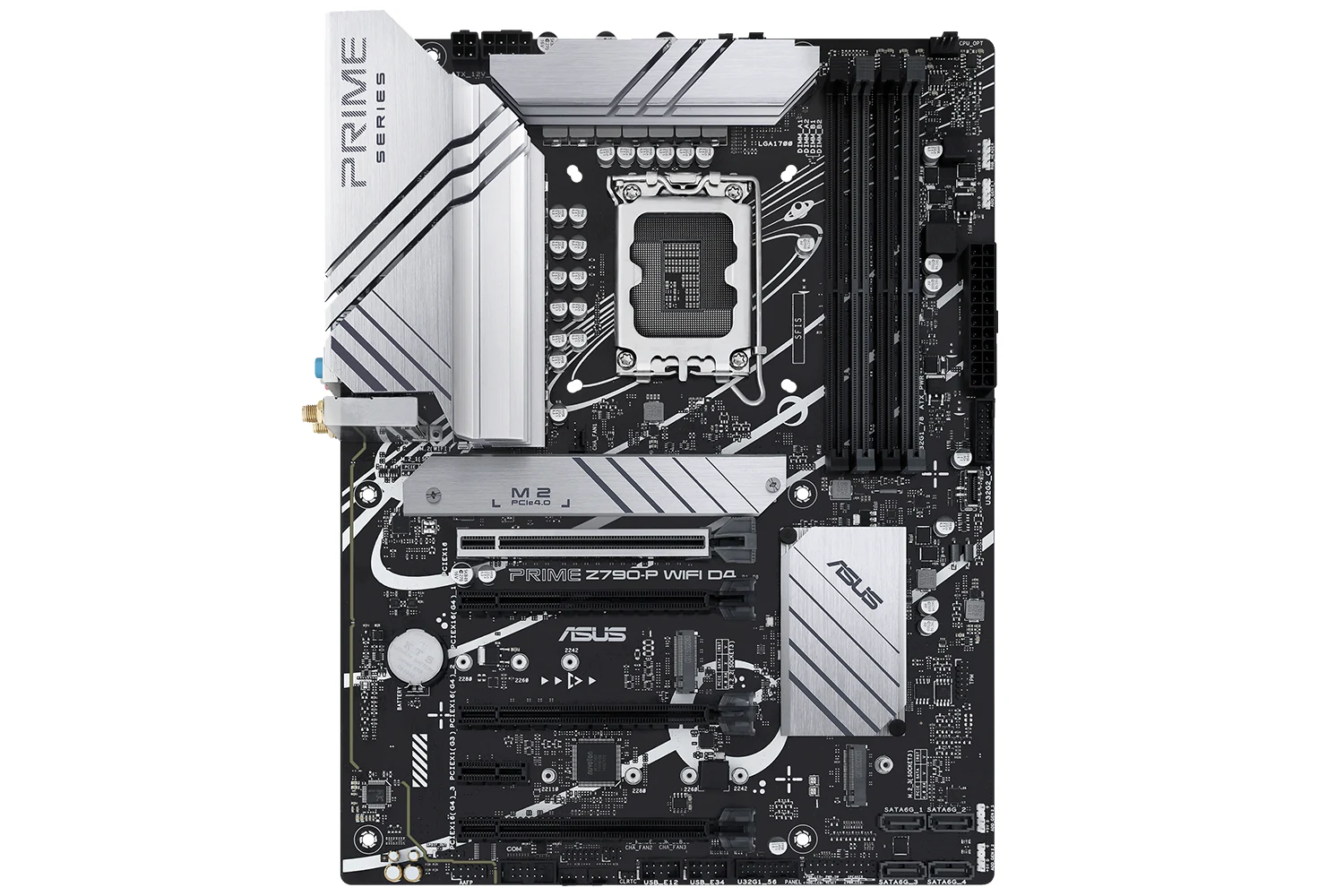

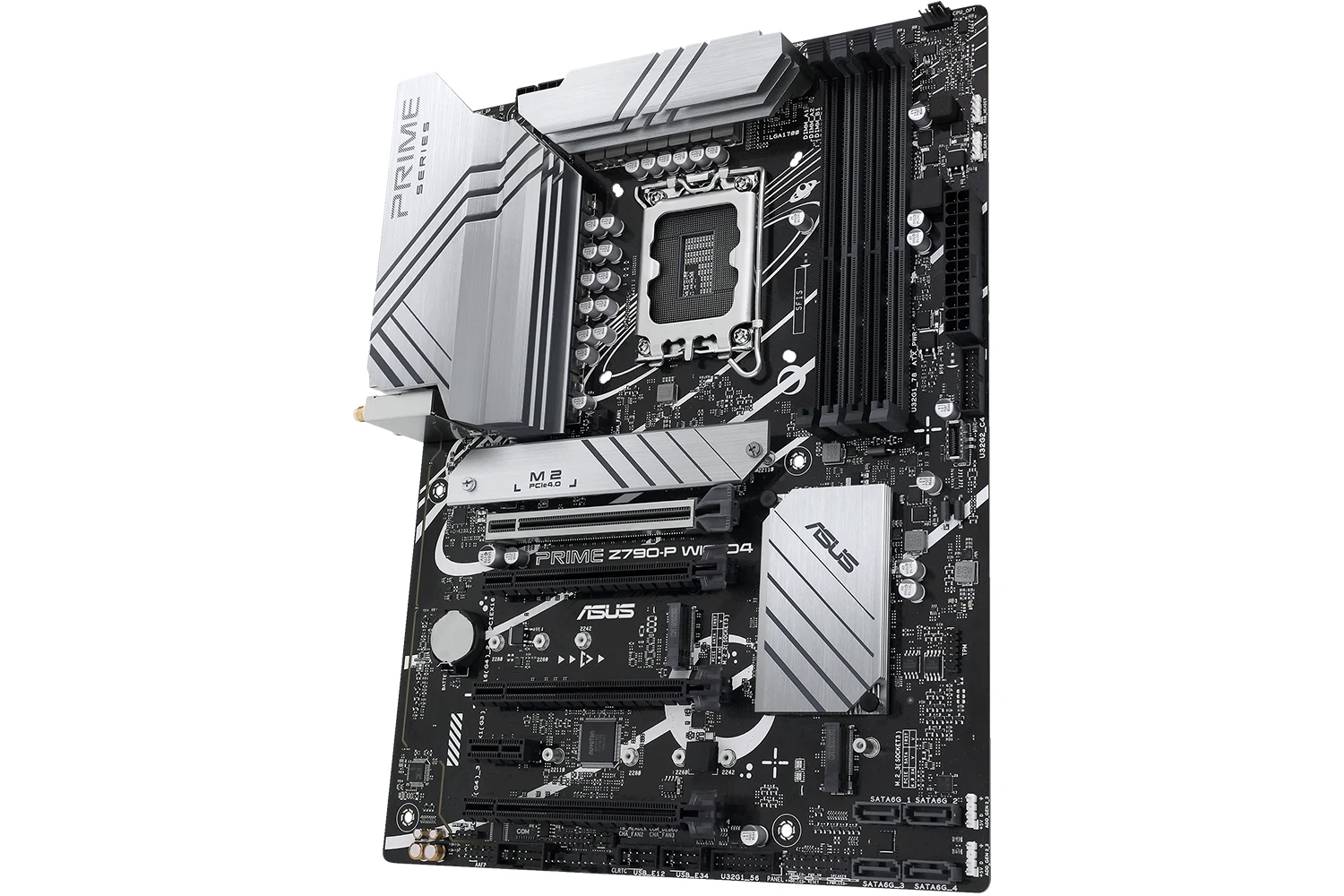

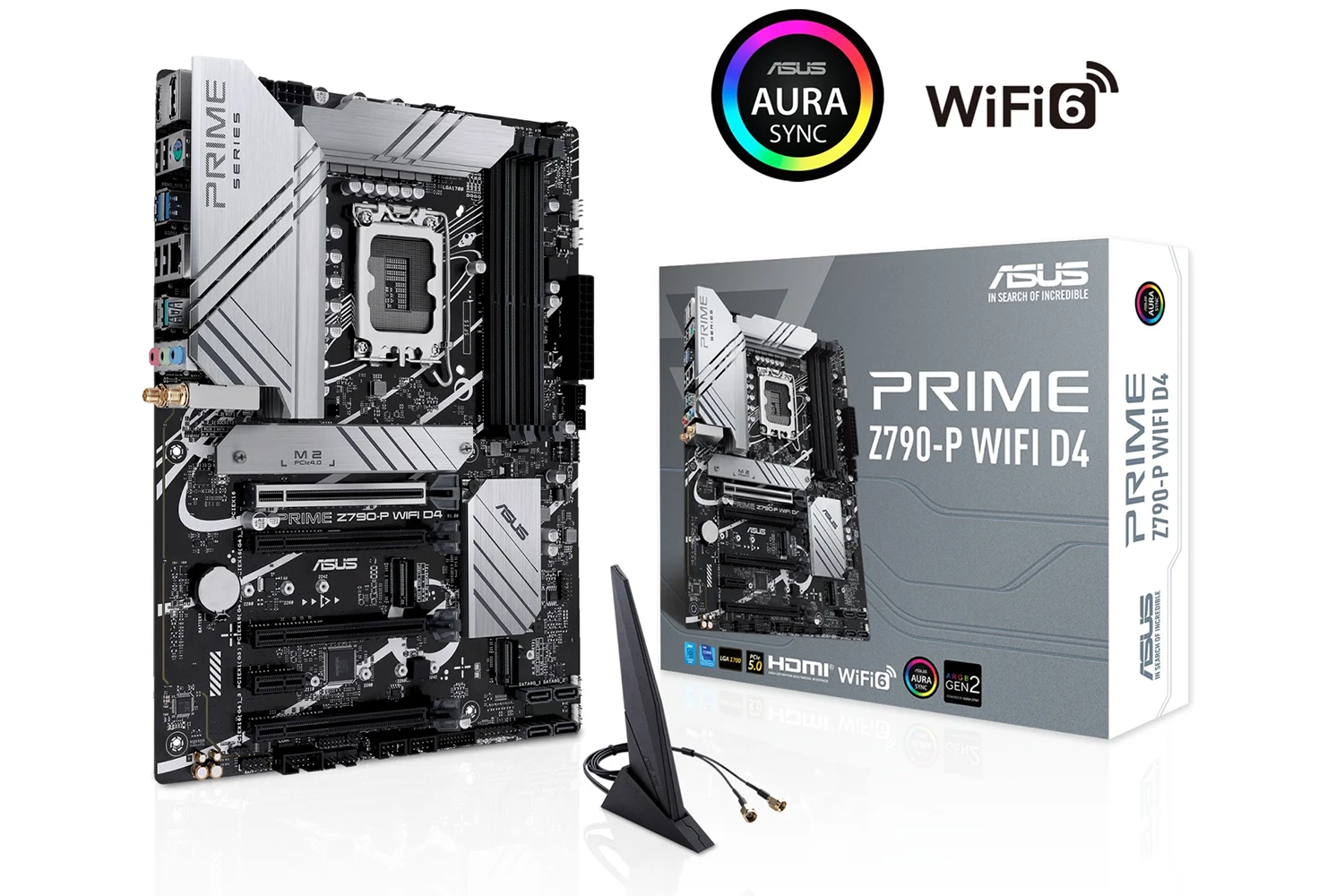

ASUS PRIME Z790-P WIFI D4, matična ploča

SOCKET: INTEL LGA1700
PODRŽANI PROCESORI:  Intel 12/13. Generacija Core™ i7/i5/i3/Pentium/Celeron
VELIČINA: ATX,  30.5 x 23.4 cm
ČIPSET: Intel Z790 Express
MEMORIJA: 4 x DDR4 (5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133MHz) do ukupno 128GB kapaciteta, dvokanalna s Extreme Memory Profile (XMP), OptiMem II podrška
GRAFIKA: preko CPU
RAID: DA (0,1,5,10)
SLOTOVI ZA PROŠIRENJE: 1 x PCIe 5.0/4.0/3.0 x16 (x16 mode), 3 x PCIe 4.0 x4, 1 x PCIe 3.0 x1
MREŽNA KARTICA: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) + Wi-Fi 6 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz + BLUETOOTH 5.2
ZVUČNA KARTICA: Realtek® High Definition Audio Audio CODEC

UNUTARNJI PRIKLJUČCI:
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ (USB4®) Header

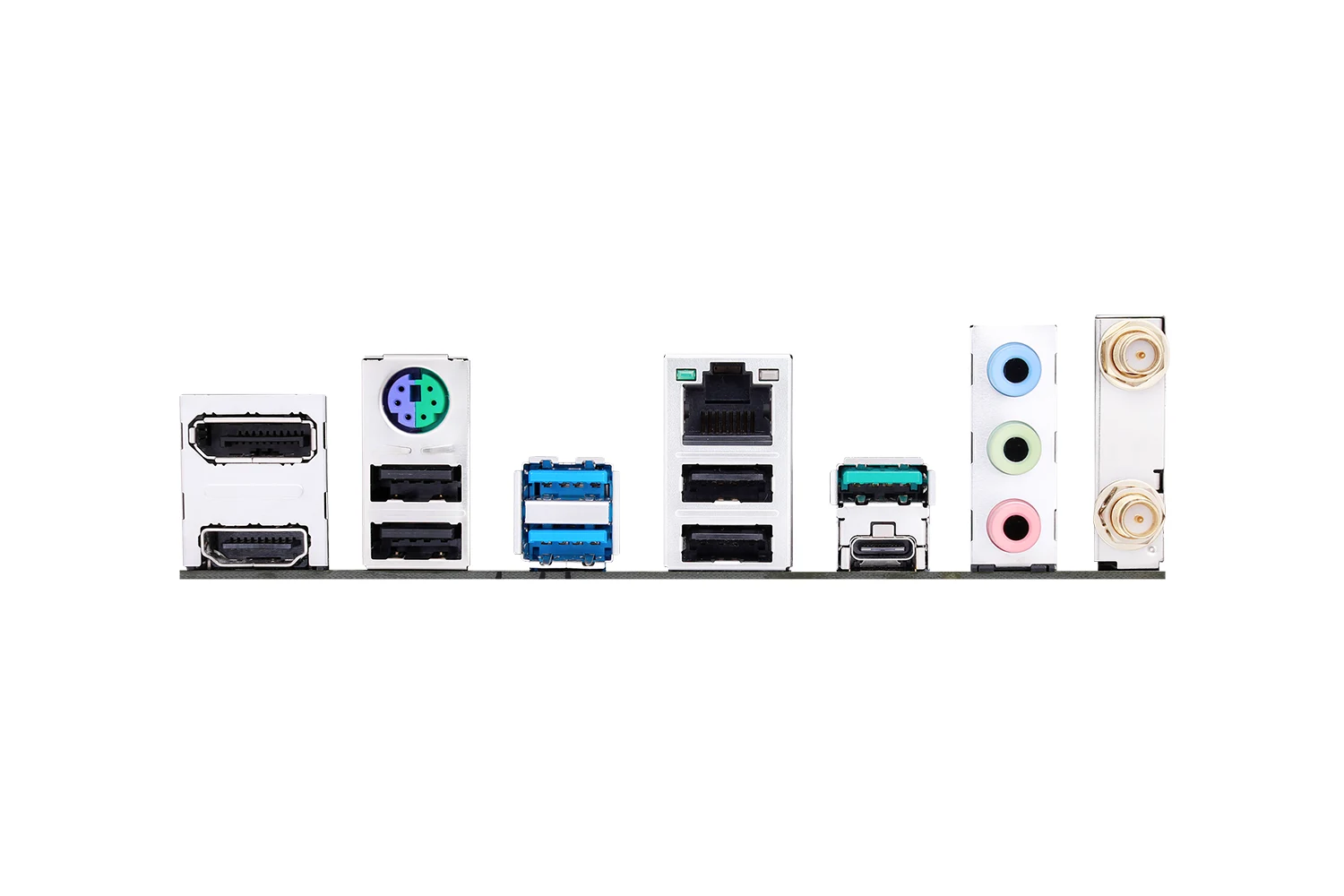

VANJSKI PRIKLJUČCI:
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Jamstvo: 36 mjeseci
EAN: 4711081944843
