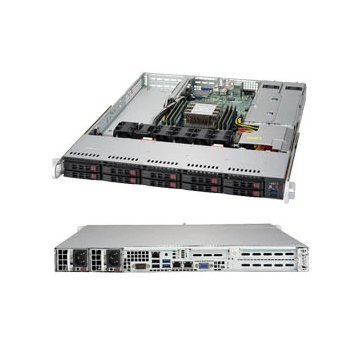

Supermicro assembled server based on SYS-1019P-WTR, 1x CLX 4208 CPU, 1x 32GB DDR4, 4x Toshiba 2.5″ 600GB SAS3, 1x AOC-S3008L-L8E, 2x nternal Mini-SAS HD to Mini-SAS HD 60cm cable

System Type: Server
System Form Factor: Rack-Mountable
Supported CPUs: Xeon Scalable Processors
CPU: Intel Xeon Silver 4208 Processor
Internal Clock Rate: 2.1 GHz (up to 3.2 GHz)
CPU Core Quantity: 8
Threads Quantity: 16
CPU podnožje: Socket 3647
CPU Installed Quantity: 1
CPU Maximum Quantity Supports: 1
CPU Cache Size: 11 MB
Chipset: Intel C622
Features: Supports 14 nm Processors
Quantity of Mainboards Supported: 1
Vrsta memorije: DDR4 SDRAM
Memory Form Factor: DIMM 288-pin
Provides Error Checking Method: ECC
Installed System Memory Storage Capacity: 32 GB
Maximum Installable System Memory Storage Capacity: 1.5 TB
Memory Slot Total Quantity: 6
Integrated: Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (10)
Remote Management Controller:
Gigabit Ethernet (RJ-45)
Storage Controller:
PCIe 3.0 x4/SATA (M.2)
Plug-in-card: HBA:
Broadcom 3008 SAS 3 (2 x Mini-SAS HD)
Hard Disk Drive: 4×600 GB, SAS 3, 2.5" Form Factor
Fans Quantity: 5 x 40mm
Video Controller Form Factor: Integrated
Video Chipset: Aspeed AST2500
Vrsta video memorije: Video Controller Memory
Networking Form Factor: Integrated
LAN Chipset: Intel X772
LAN: 10G Ethernet
Network: Integrated: 10 Gbps (Intel X557)
Number of 2.5-inch Hot-Swap Drive Bays: 10
PCI Express 3.0 x16: 2
PCI Express 3.0 x8: 1
LAN: 2 (RJ-45)
USB 3.0: 2 (USB 2.0 (type A))
USB 2.0: 2 (USB 2.0 (type A))
VGA: 1 (15-pin D-sub)
Serial: 1
Power Device Type: Power Supply – redundant
Power Device Location: Internal
Input Voltage: AC 100-240 V
Input Frequency: 50/60 Hz
Power Device Maximum Quantity Supports: 2
Maximum Output Power: 500 W
External Color: Black
Standard Rack Height: 1 U
Cable Included: 2 x Mini-SAS HD to Mini-SAS HD
Maximum Operating Ambient Temperature: 35 °C
Maximum Operating Humidity: 90 %
Minimum Operating Ambient Temperature: 0 °C
Minimum Operating Humidity: 8 %
Height (mm): 43 mm
Depth (mm): 597 mm
Width (mm): 437 mm
Nominal Weight: 12.25 kg
Warranty Products Returnable: Yes
Warranty Term (month): 36 month(s)
Warranty validation Criteria: Serial Number
Pack Weight Brutto (kg): 13 kg
Pack Weight Netto (kg): 0 kg
Pieces in pack: 1
Retail Packaging Net Weight Carton: 0 kg
Retail Packaging Net Weight Plastic: 0 kg
Packs in Box: 1
Package Type: Retail
