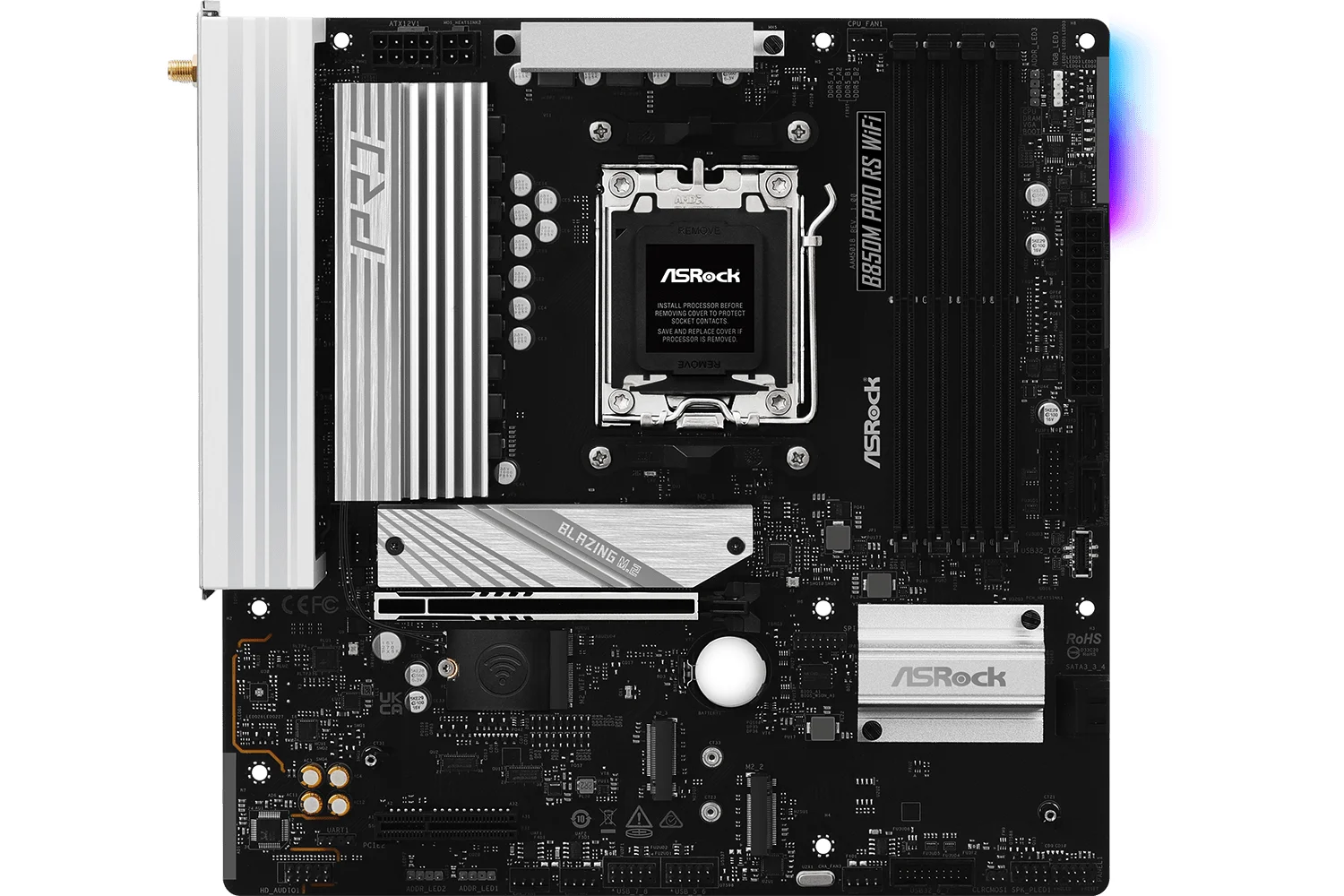

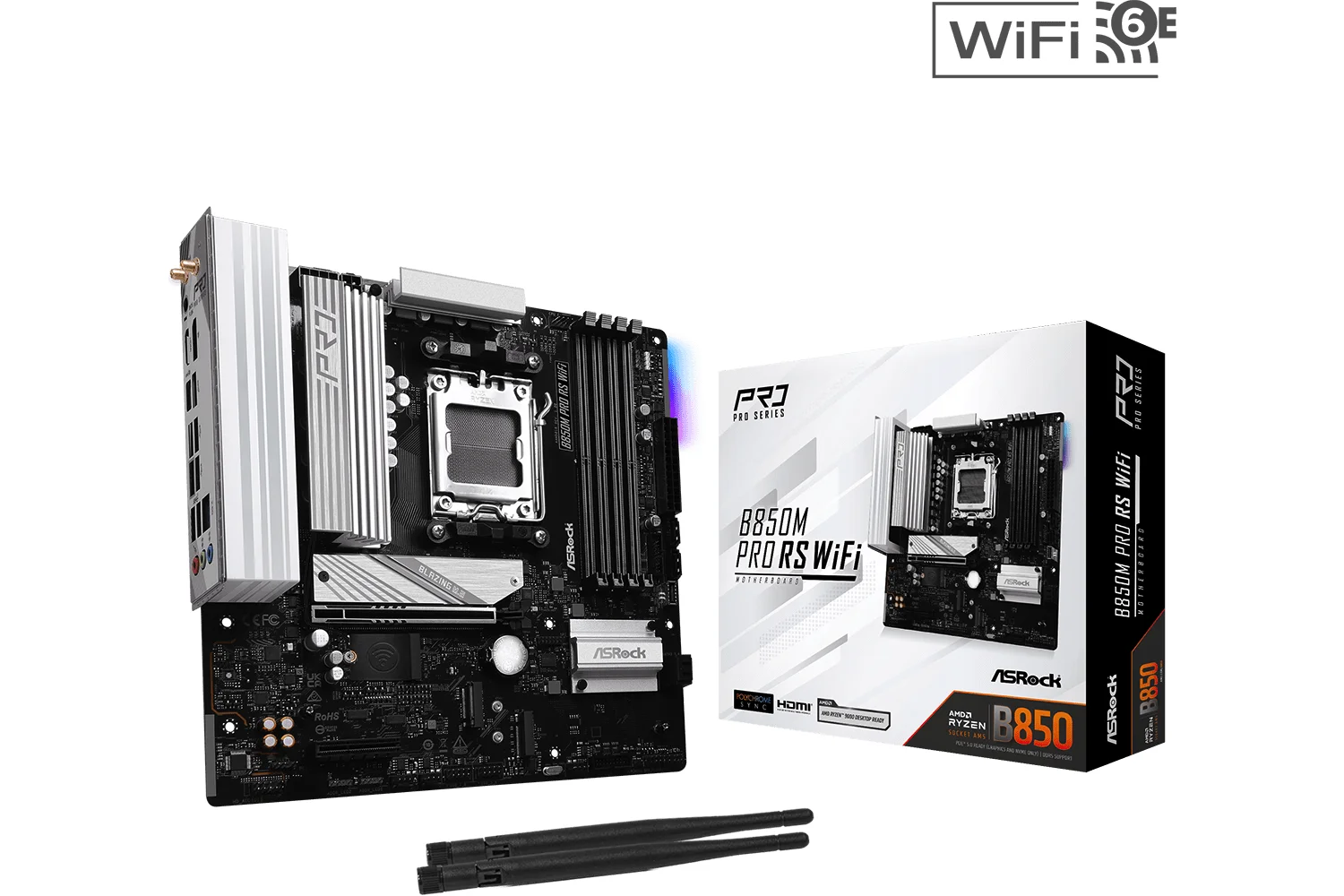

B850M Pro RS WiFi matična ploča iz ASRock-a nudi vrhunske performanse i modernu povezanost za korisnike koji zahtijevaju stabilnost i visoke performanse. Dizajnirana je za AMD Socket AM5 Ryzen™ 9000, 8000 i 7000 seriju procesora, pružajući 8+2+1 fazni naponski dizajn s Dr.MOS-om za VCore+SOC+MISC. Ploča podržava DDR5 memoriju do 8000 MHz (OC) s četiri DIMM slota i ima napredne PCIe 5.0 x16 i PCIe 4.0 x4 utore.
Za povezivanje, tu su 2.5Gb/s LAN i Wi-Fi 6E za brzu bežičnu povezanost, dok audio iskustvo poboljšava Realtek ALC897 HD audio s Nahimic tehnologijom. Ploča također nudi brojna proširenja za pohranu s PCIe Gen5x4 M.2, PCIe Gen4x4 M.2 i četiri SATA3 konektora.
USB opcije uključuju 1x USB 3.2 Gen2 Type-C, 1x USB 3.2 Gen2 Type-A te 6x USB 3.2 Gen1 i 8x USB 2.0 portova. Ova matična ploča je također kompatibilna s Polychrome RGB tehnologijom za personalizaciju osvjetljenja.
Za lakši rad, tu je Auto Driver Installer, BIOS Flashback i unaprijed instalirani I/O Shield. B850M Pro RS WiFi kombinira snagu, povezivost i jednostavnost korištenja, idealna za gamere i entuzijaste.
Tehničke karakteristike:
| Tehnička Karakteristika | Detalji |
|---|---|
| Unique Feature | Superb Productivity |
| – PCIe Gen5 (Graphics, M.2) | |
| – Dual Channel DDR5 | |
| Rock-Solid Durability | |
| – 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC | |
| – Pre-Installed I/O Shield | |
| Ultrafast Connectivity | |
| – 2.5G LAN, 802.11axe Wi-Fi 6E Module | |
| EZ Update | |
| – BIOS Flashback Button | |
| – ASRock Auto Driver Installer | |
| EZ Troubleshooter | |
| – ASRock Post Status Checker | |
| CPU | – Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* |
| * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. | |
| Chipset | – AMD B850 |
| Memory | – Dual Channel DDR5 Memory Technology |
| – 4 x DDR5 DIMM Slots | |
| – Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) | |
| – Max. capacity of system memory: 256GB | |
| – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |
| BIOS | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) |
| – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz | |
| – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz | |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| – Nahimic Audio | |
| LAN | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| – Dragon RTL8125BG | |
| – Supports Dragon 2.5G LAN Software | |
| – Smart Auto Adjust Bandwidth Control | |
| – Visual User Friendly UI | |
| – Visual Network Usage Statistics | |
| – Optimized Default Setting for Game, Browser, and Streaming Modes | |
| – User Customized Priority Control | |
| Wireless LAN | – 802.11axe Wi-Fi 6E Module |
| – Supports IEEE 802.11a/b/g/n/ac/ax/axe | |
| – Supports Dual-Band 2×2 with extended 6GHz band* support | |
| – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology | |
| – Supports Bluetooth 5.2 | |
| – Supports MU-MIMO | |
| * The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. | |
| Slots | CPU: |
| – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* | |
| – 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode* | |
| Chipset: | |
| – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module | |
| – 15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
| Storage | CPU: |
| – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* | |
| – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| Chipset: | |
| – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| – 4 x SATA3 6.0 Gb/s Connectors | |
| RAID | – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* | |
| * Requires additional M.2 NVMe expansion cards to support RAID 10 | |
| USB | CPU: |
| – 1 x USB 3.2 Gen2 Type-C (Rear) | |
| – 1 x USB 3.2 Gen2 Type-A (Rear) | |
| Chipset: | |
| – 1 x USB 3.2 Gen1 Type-C (Front) | |
| – 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) | |
| – 8 x USB 2.0 (4 Rear, 4 Front) | |
| Connector | – 1 x SPI TPM Header |
| – 1 x Power LED and Speaker Header | |
| – 1 x RGB LED Header* | |
| – 3 x Addressable LED Headers** | |
| – 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** | |
| – 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** | |
| – 1 x 24 pin ATX Power Connector | |
| – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
| – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) | |
| – 1 x Front Panel Audio Connector | |
| – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) | |
| – 1 x Front Panel Type C USB 3.2 Gen1 Header | |

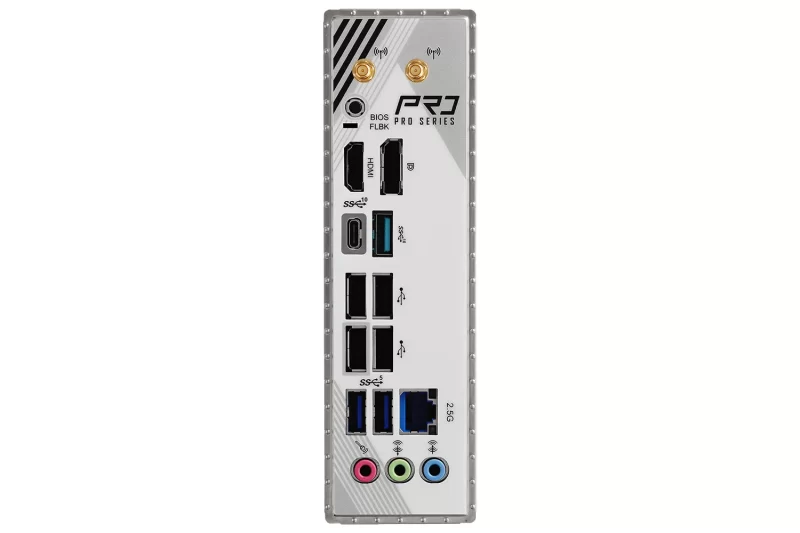

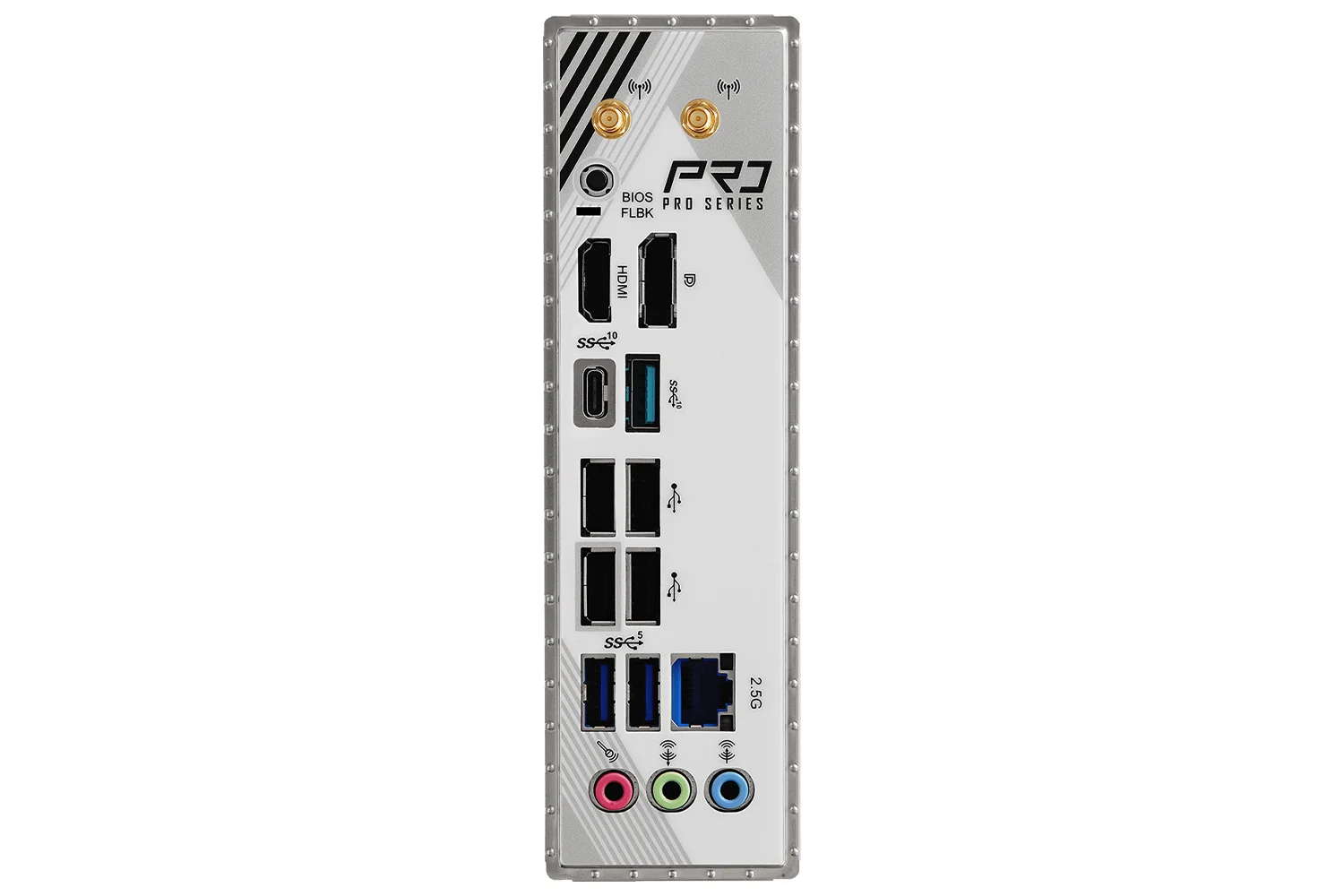

| Rear Panel I/O | – 2 x Antenna Ports |
| – 1 x HDMI Port | |
| – 1 x DisplayPort 1.4 | |
| – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) | |
| – 1 x USB 3.2 Gen2 Type-C Port | |
| – 2 x USB 3.2 Gen1 Ports | |
| – 4 x USB 2.0 Ports | |
| – 1 x RJ-45 LAN Port | |
| – 1 x BIOS Flashback Button | |
| – HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Software and UEFI | Software: |
| – ASRock Motherboard Utility (A-Tuning) | |
| – ASRock Dragon 2.5G LAN Software | |
| – ASRock Polychrome SYNC* | |
| UEFI: | |
| – ASRock EZ Mode | |
| – ASRock Full HD UEFI | |
| – ASRock Auto Driver Installer | |
| – ASRock Instant Flash | |
| Accessories | – 2 x SATA Data Cables |
| – 2 x ASRock WiFi 2.4/5/6 GHz Antennas | |
| Form Factor | – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| OS | – Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | – FCC, CE |
| – ErP/EuP ready (ErP/EuP ready power supply is required) |
Jamstvo: 36 mjeseci
EAN: 4711581490352
