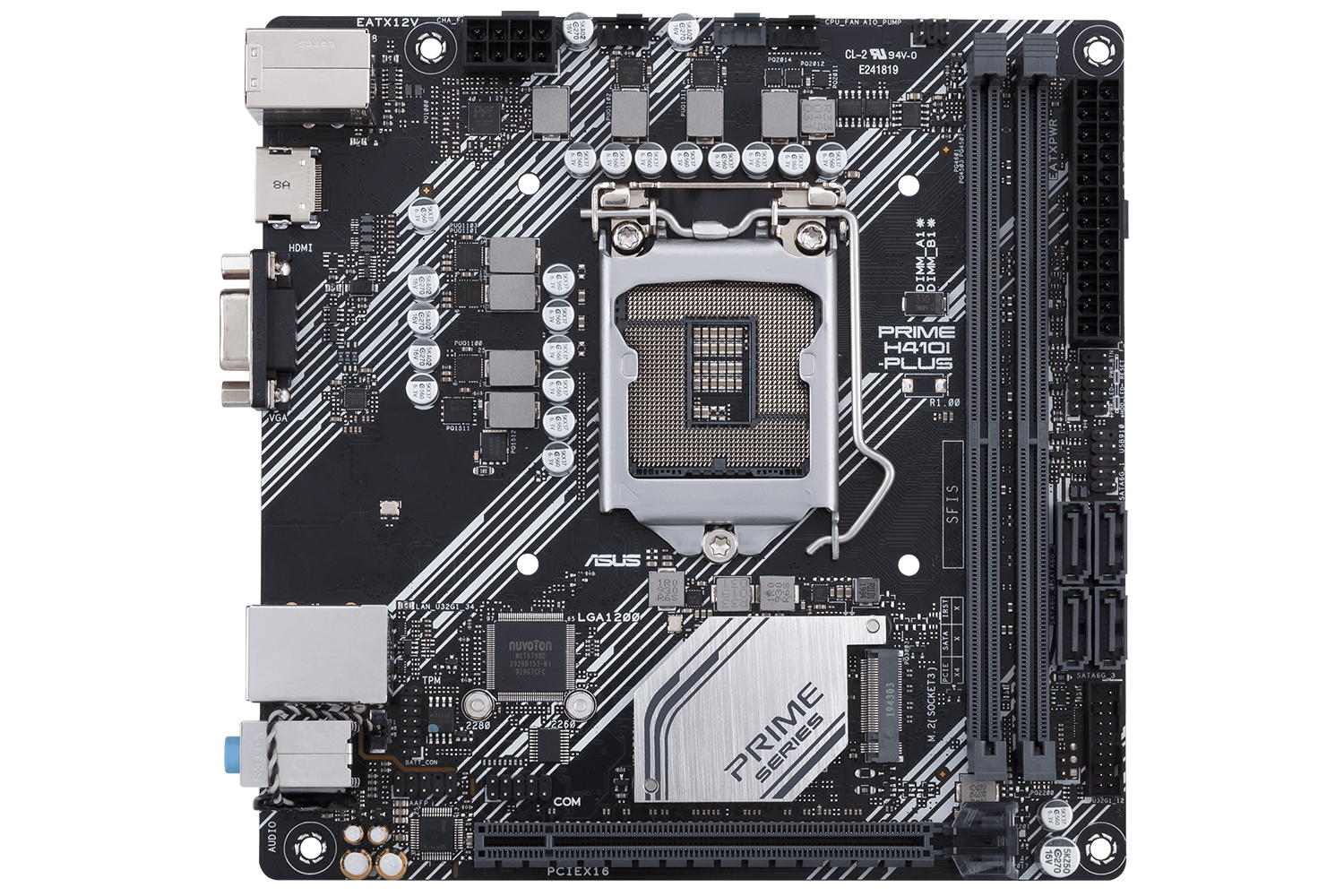

Asus PRIME H410I-PLUS, matična ploča

  • Podrška za 10. Gen Intel® Core™ Procesora
  • Podrška za DDR4 memoriju do DDR4 2666 MHz
  • 4+1+1 DrMOS fazni dizajn dostave snage
  • PCIe 3.0 podrška, i 1x Gen3 x4 M.2
  • Realtek® RTL8111H 1Gbit LAN
  • 7.1 Surround HD zvuk

Naša najniža cijena:

650,80 kn s PDV-om

* Cijena za gotovinsko plaćanje

Redovna cijena: 663.17 kn

Proizvod nije na skladištu

Podrška kupcima

+385 91 527 6030 ili info@megabajt.hr

Radno vrijeme podrške

24/7

Bitno nam je da ste zadovoljni

Mogućnost povrata robe u roku od 14 dana

CPU
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
*Supports up to 65W CPUs. For more details, please refer to www.asus.comfor Intel® CPU support list.

Chipset
Intel® H410

Memory
Intel® H410 Chipset
2 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Graphic
Integrated Graphics Processor- Intel® UHD Graphics support
1 x HDMI 1.4b
1 x D-Sub
*Graphics specifications may vary between CPU types.

Expansion Slots
16-Lane CPU-
1 x PCIe 3.0/2.0 x16 (x16 mode)

Storage
Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
Intel® H410 Chipset :
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode)
4 x SATA 6Gb/s port(s)

LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard

Audio
Realtek® ALC887 7.1-Channel High Definition Audio CODEC *
– Supports : Jack-detection, up to 24-Bit/192kHz playback
Audio Feature :
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB Ports
Rear USB Port ( Total 4 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 4 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
2 x USB 2.0 port(s)

Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
– EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS 5X PROTECTION III
– ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
– ASUS Enhanced DRAM Overcurrent Protection
– ASUS ESD Guards
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot Core
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-Connector
– ASUS Q-DIMM
– ASUS Q-Slot
– ASUS Q-Connector
– ASUS Q-DIMM
– ASUS Q-Slot
– ASUS Q-Connector
– ASUS Q-DIMM
– ASUS Q-Slot
AURA Sync
– Aura RGB header(s)

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector

Accessories
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Operating System
Windows® 10 64-bit

Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )

JAMSTVO: 36 mjeseci

Dodatne informacije

Težina 0.671 kg
Dimenzije 23.000 × 6.300 × 18.500 cm
Čipset matične ploče

Intel H410

Socket matične ploče

LGA 1200

Veličina matične ploče

Micro ATX

Dodatne značajke matične ploče

M.2 Slot

LAN Brzina

1 gbit
