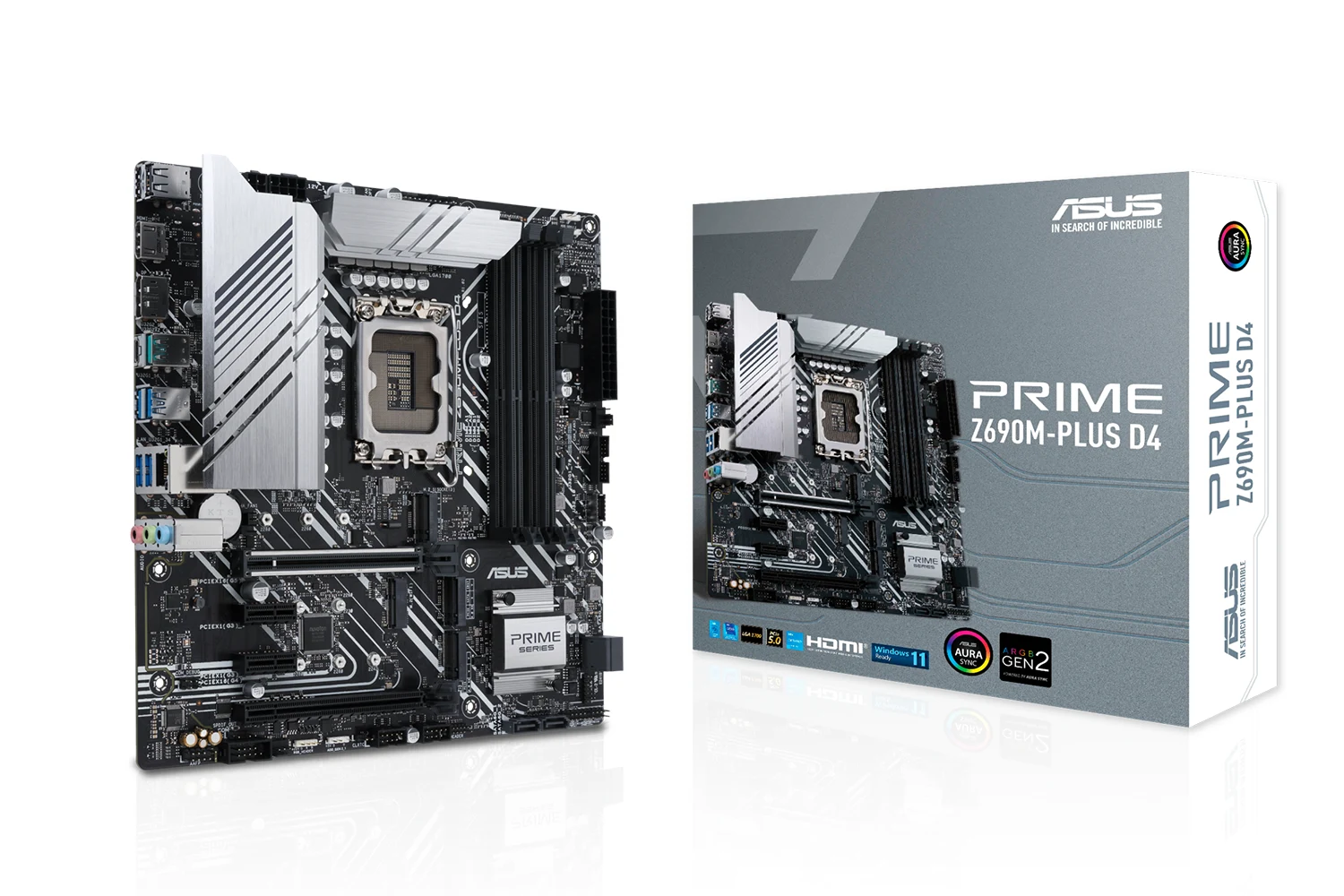

Asus PRIME Z690M-PLUS D4, matična ploča

  • Podržava 12. Generaciju Intel® Core™ procesora
  • Podrška za DDR4 memoriju do 5333 (OC) MHz
  • PCIe 5.0 podrška, 3x NVMe PCIe 4.0 x4
  • Ugrađen Intel® 1Gb LAN
  • USB 3.2 Gen 2×2 Type-C® priključci
  • 10+1 DrMOS fazni dizajn dostave snage

Naša najniža cijena:

2.161,80 kn (286,92 €) s PDV-om

* Cijena za gotovinsko plaćanje

Redovna cijena: 2202.88 kn

Proizvod nije na skladištu

Podrška kupcima

+385 91 527 6030 ili info@megabajt.hr

Radno vrijeme podrške

24/7

Bitno nam je da ste zadovoljni

Mogućnost povrata robe u roku od 14 dana

CPU:
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processor

Chipset:
Z690

Memory:
4 x DIMM, Max. 128GB, DDR4
5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Graphics
1 x DisplayPort**
1 x HDMI® port***
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Support 4K@60Hz as specified in DisplayPort 1.4.
***Support 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
Intel® 12th Gen Processors*
1 x PCIe 5.0/4.0/3.0 x16 slot
Intel® Z690 Chipset**
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
* Please check PCIe bifurcation table in support site.
** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot

Storage
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
– Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

Ethernet
1 x Intel® 1Gb Ethernet

Wireless & Bluetooth
*Wi-Fi module is sold separately.

USB
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 7 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports*
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Audio
Realtek 7.1 Surround Sound High
Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Intel® 1Gb Ethernet port
3 x Audio jacks

Internal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header

BIOS
192 (128+64) Mb Flash ROM, UEFI AMI
BIOS

Manageability
WOL by PME, PXE

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
2 x M.2 SSD screw packages
Installation Media
1 x Support DVD
Documentation
1 x User guide

Operating System
Windows® 11 64-bit, Windows® 10 64-bit

Form Factor
microATX
24.4cm x 24.4cm

JAMSTVO: 36 mjeseci

Dodatne informacije

Težina 1,297 kg
Dimenzije 27,800 × 26,500 × 7,000 cm
Čipset matične ploče

Intel 600 serija

Socket matične ploče

LGA 1700

Veličina matične ploče

Micro ATX

Dodatne značajke matične ploče

M.2 Slot, PCI Express 4.0 x16, PCI Express 5.0 x16, USB Type-C

LAN Brzina

1 gbit
