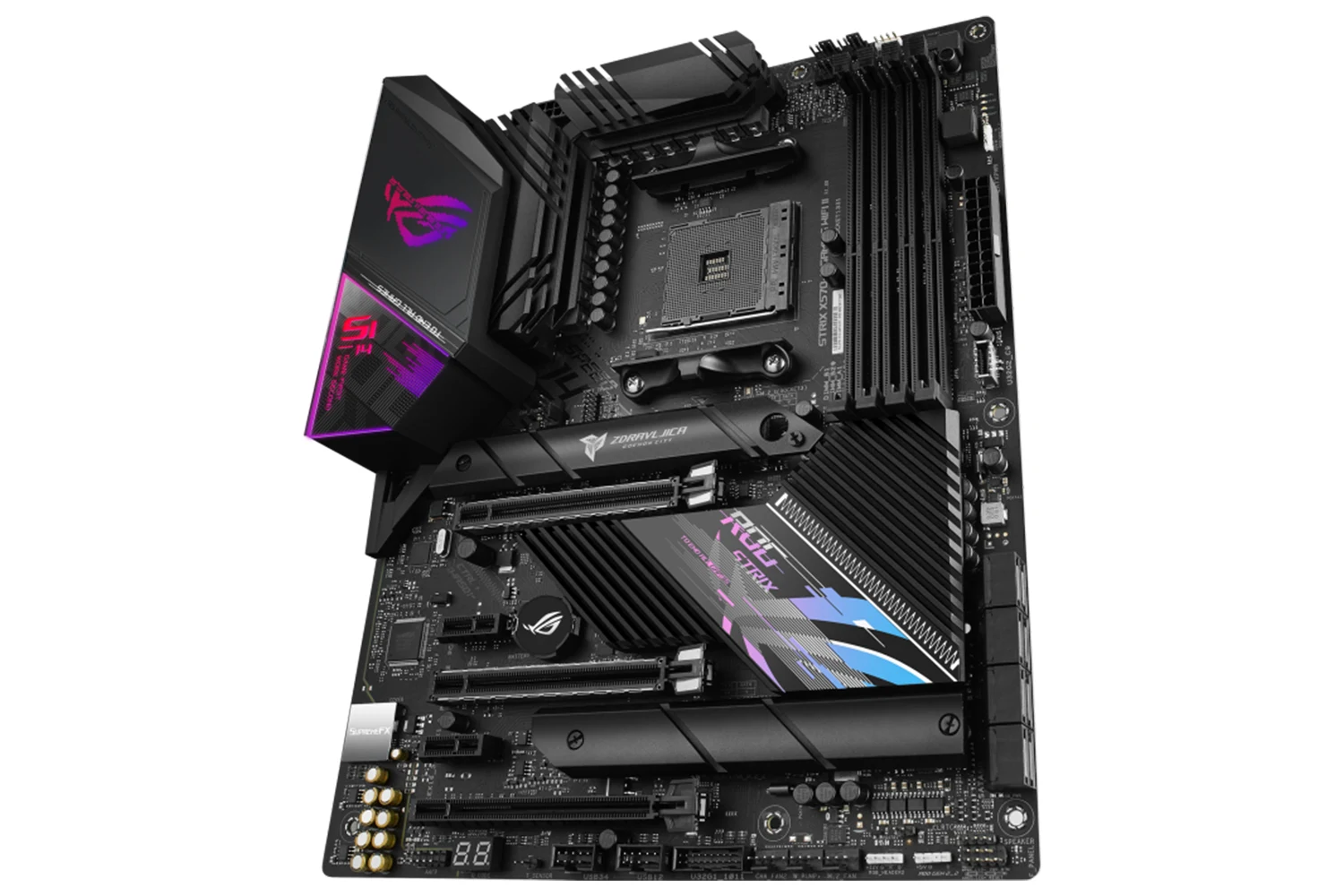

Asus ROG STRIX X570-E GAMING WIFI II, matična ploča

ROG Strix X570-E Gaming WiFi II matična ploča pruža potpuno ROG iskustvo. Puna je značajki kao što su novo pasivno hlađenje chipseta, WIFI 6E plus poboljšano overclockanje i audio performanse uz značajke koje pomažu “uradi sam” iskusnim graditeljima, ali i početnicima. S futurističkim izgledom kojeg komplementira ugrađeno RGB osvjetljenje, Strix X570-E Gaming WiFi II matična ploča ima sve što vam treba za izgraditi impresivnu gaming mašinu koja odskače od ostalih.

CPU
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
* Refer to www.asus.com for CPU support list.

Chipset
X570

Memory
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133, un-buffered memory

AMD Ryzen™ 5000 and 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133, un-buffered memory

AMD Ryzen™ 2000 Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory

AMD Ryzen™ 2000 and 3000 G-Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory

Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

Graphics
1 x DisplayPort
1 x HDMI® port
– Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
– Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

Expansion Slots
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
2 x PCIe 4.0 x16 (x16 or dual x8)*
AMD Ryzen™ 5000 G Series/4000 G-Series/ 2000 Series Processor
2 x PCIe 3.0 x16 (x16 or dual x8)*
AMD Ryzen™ 2000 G-Series/ 3000 G-Series Processor
1 x PCIe 3.0 x16 (x8 mode)*
AMD X570 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1
*PCIeX16_3 slot shares bandwidth with PCIeX1_2.

Storage
Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen™ 5000 G-Series/4000 G-Series/ 3000 G-Series/ 2000 G-Series/2000 Series Processor
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD X570 Chipset
M.2_2 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
8 x SATA 6Gb/s ports
Supports RAID 0, 1, 10

Ethernet
1 x Realtek 2.5Gb Ethernet
1 x Realtek 2.5Gb Ethernet
1 x Intel® I211-AT 1Gb Ethernet
Anti-surge LANGuard
ROG GameFirst Technology

Wireless & Bluetooth
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

USB
Rear USB: Total 8 ports
AMD RyzenTM 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors
– 4 x USB 3.2 Gen2 ports (4 ports at back panel, Type-A)
AMD RyzenTM 3000 G-Series, 2000, and 2000 G-Series Desktop Processors
– 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A)
AMD X570 chipset
– 1 x USB 3.2 Gen2 front panel connector
– 4 x USB3.2 Gen2 (at back panel, 3x Type-A, 1x Type-C)
– 2 x USB3.2 Gen1 ports (at front panel)
– 4 x USB 2.0 ports (at front panel)
Front USB: Total 7 ports

Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*
Audio Features
– SupremeFX Shielding Technology
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Back Panel I/O Ports
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I211-AT 1Gb Ethernet port
1 x Realtek 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
1 x 4-pin M.2 Fan header
1 x W_PUMP+ header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PXE

Accessories
Cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual

Operating System
Windows® 11 64-bit, Windows® 10 64-bit

Form Factor
ATX
30.5cm x 24.4cm

JAMSTVO: 36 mjeseci
