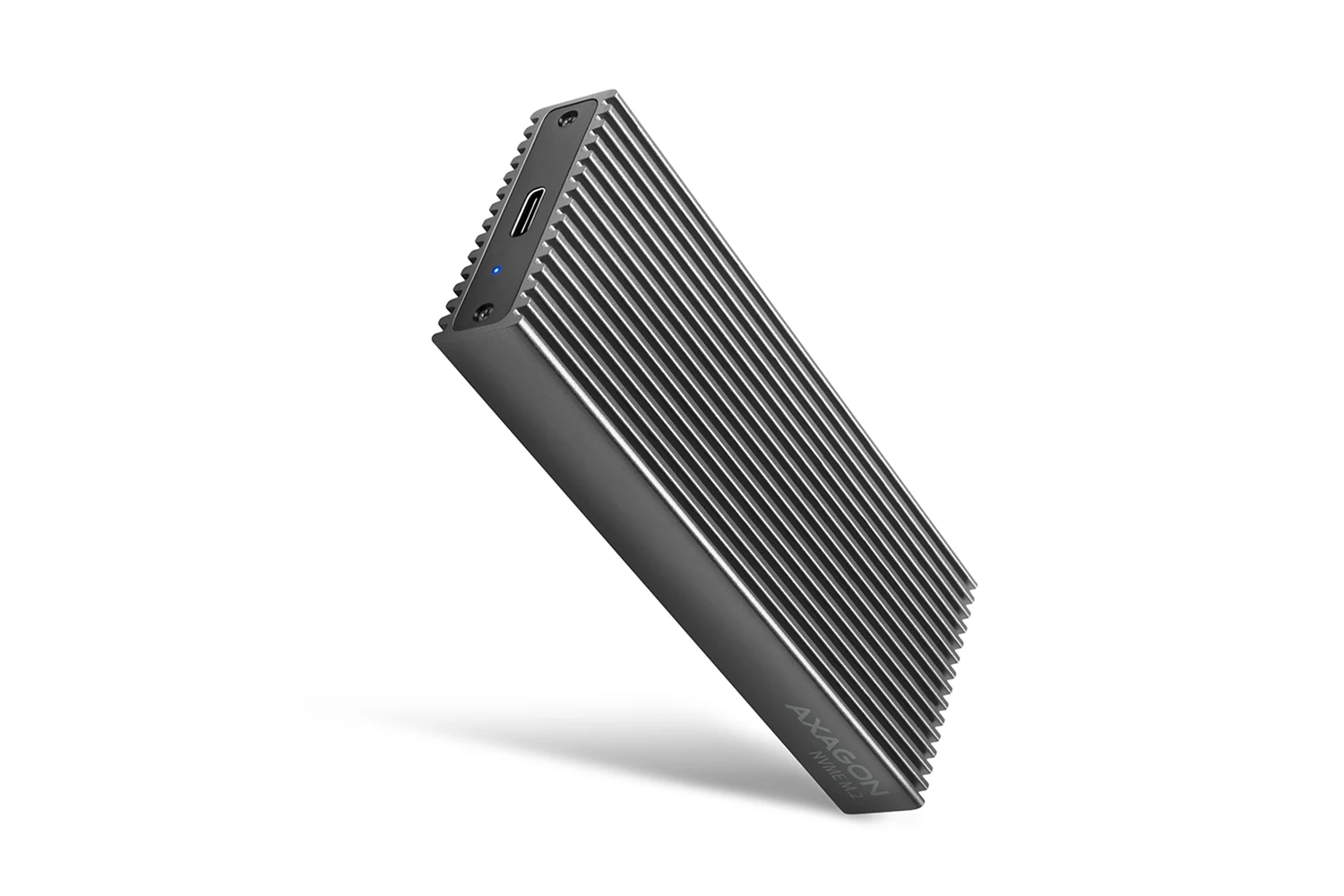

uperfast external AXAGON EEM2-XR RADIATOR box with USB 3.2 Gen 2 interface is designed for NVMe (PCI-Express) M.2 SSD disks. A big advantage of the box is the double disk cooling system and thus the lowest possible temperature of the M.2 SSD disk.

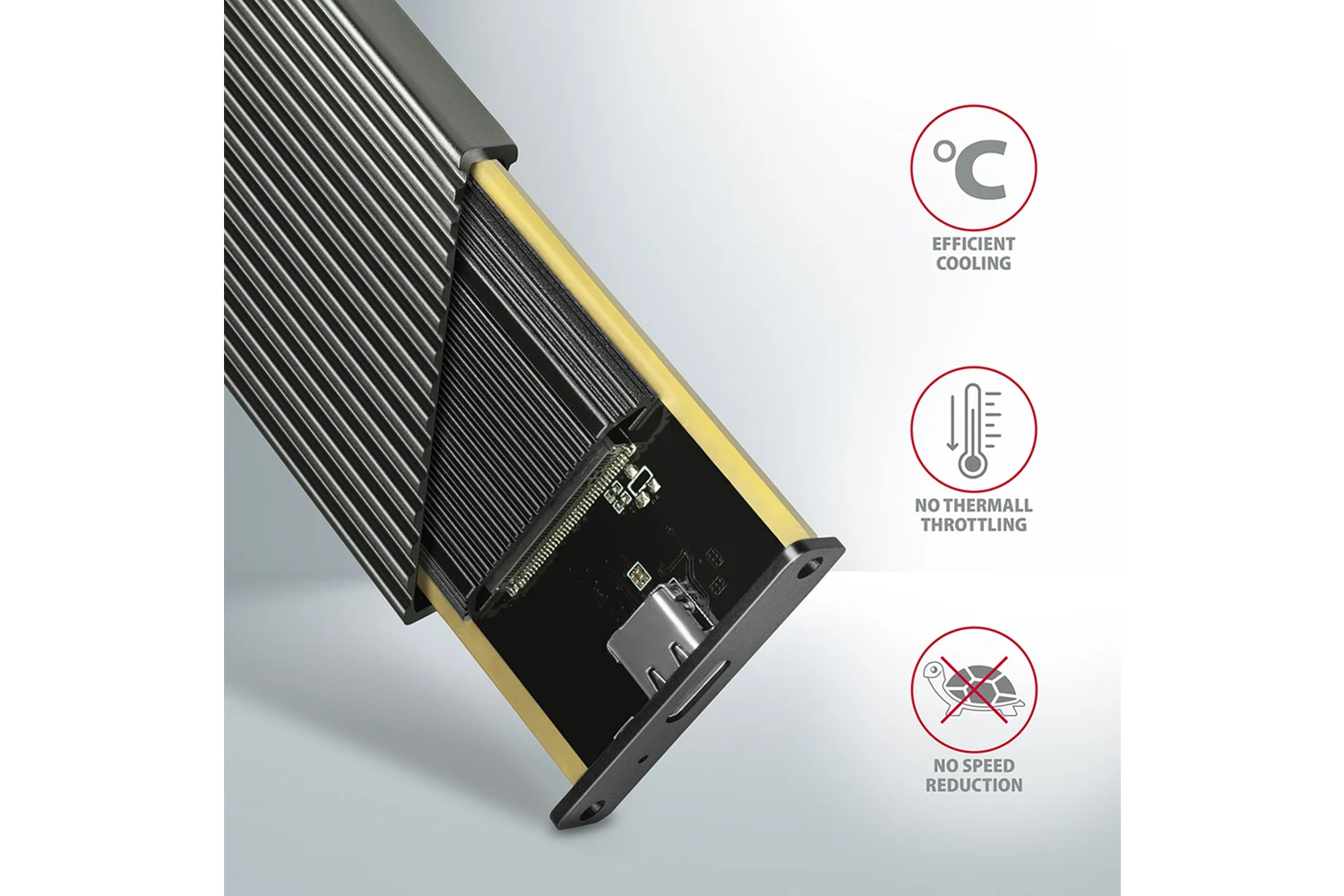

Sophisticated ribbed body design and internal heat sink provides great M.2 disk cooling. This extends its service life and also prevents the disk from slowing down, so-called “Thermal Throttling”. Robust box body also protect the disk.

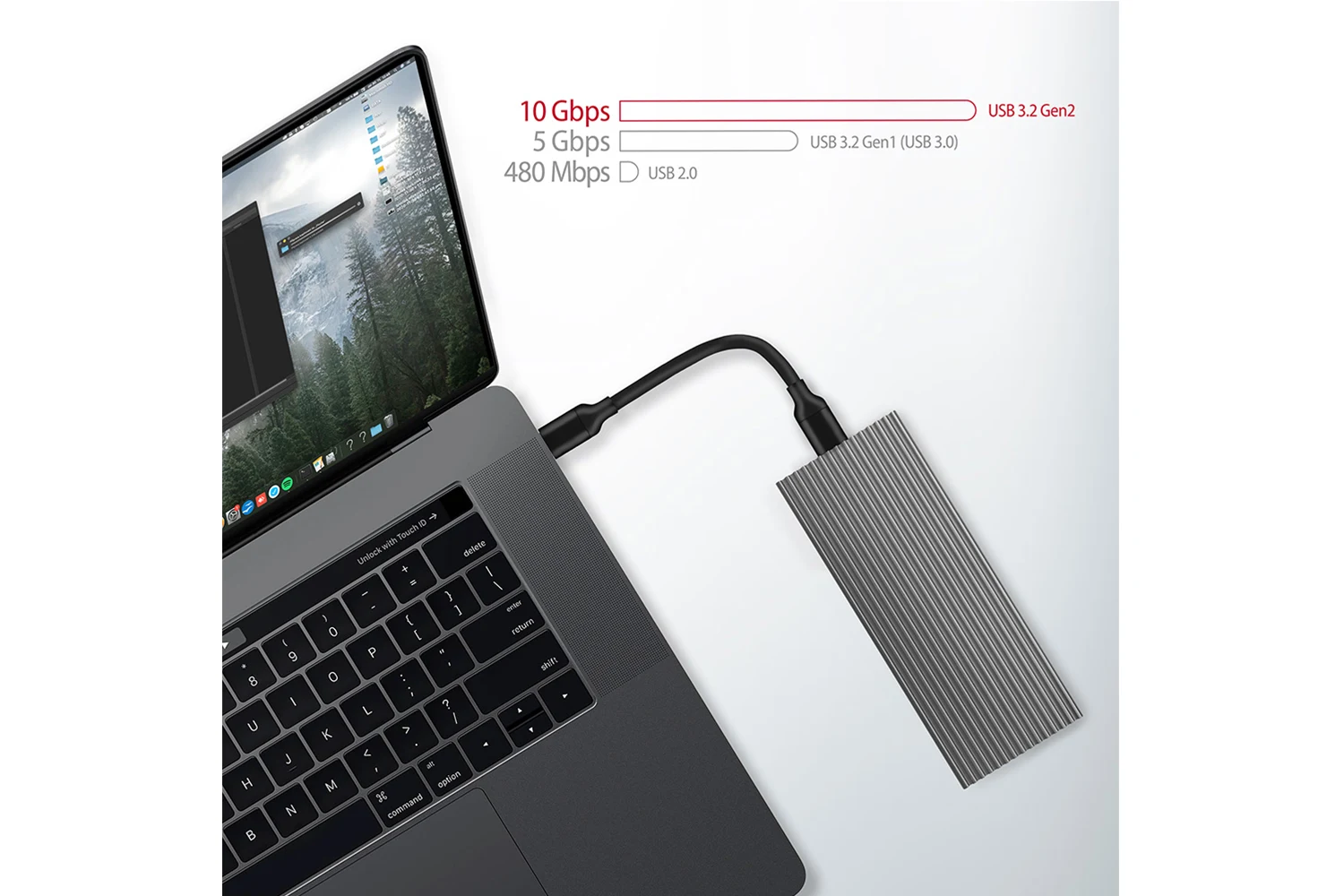

SuperSpeed USB 10 Gbit/s interface allows you to enjoy the speed of modern M.2 SSD drives. Due the fast USB 3.2 Gen 2 interface the transmission speed is up to 10Gb/s. Comfortable connection allows reversible USB-C connector. The external M.2 box also supports other modern functions, e.g. TRIM.
NVMe M.2 SSD disk up to 22×80 mm can be used in the external box. The box has no SSD capacity limitation. M.2 cards can be single-sided or double-sided.
Inserting M.2 SSD disk into this box you will create a fast and compact external drive. The box can be used with computers and laptops, as well as with OTG-enabled mobile phones and tablets.
Input:
• USB 3.2 Gen 2 / SuperSpeed+ USB speed up to 10 Gbit/s.
• Connection via reversible USB type C female connector.
Device support:
• NVMe (PCI-Express) M.2 SSD disks,
• designed for M-key or B+M-key card formats,
• NGFF 75-pin M-key slot for NVMe M.2 disks.
Other features:
• Compatible with USB 3.2 Gen 2, backward compatible with USB 3.1 Gen 1 / USB 3.0 and USB 2.0.
• Supports transmission rates 10.000 / 5000 / 480 Mbit/s (SuperSpeed+ / SuperSpeed / HighSpeed).
• Supports M-key or B+M-key NVMe (PCI-Express) M.2 SSD disks without maximum capacity limitation.
• Supports M.2 drives with a size of 2230, 2242, 2260, 2280 mm.
• Supports one-sided and double-sided M.2 SSD disks.
• Compliant with PCI Express Base Specification Revision 3.1a.
• Compliant with NVM Express 1.3 Specification.
• Compliant with USB Mass Storage Class Specification.
• The total box bandwidth / transmission rate is determined by the USB 3.2 Gen 2 interface used (theoretically up to 10 Gbit/s).
• The real box bandwidth / transmission rate is around 1000 MB/s (1 GB/s), it is given by the limits of the USB 3.2 Gen 2 interface.
• Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later.
• Supports TRIM functionality to limit gradual degradation of the SSD performance over time.
• SSD boot support in external box.
• Possibility to connect your device while running thanks to the Hot Plug support.
• Full Plug and Play support.
• Sleep mode support – after 5 minutes of inactivity.
• Power supply via USB bus up to 900mA from one USB port is sufficient in all cases.
• A white LED indicating the connection to the USB port (permanent light) and data transmission (blinking).

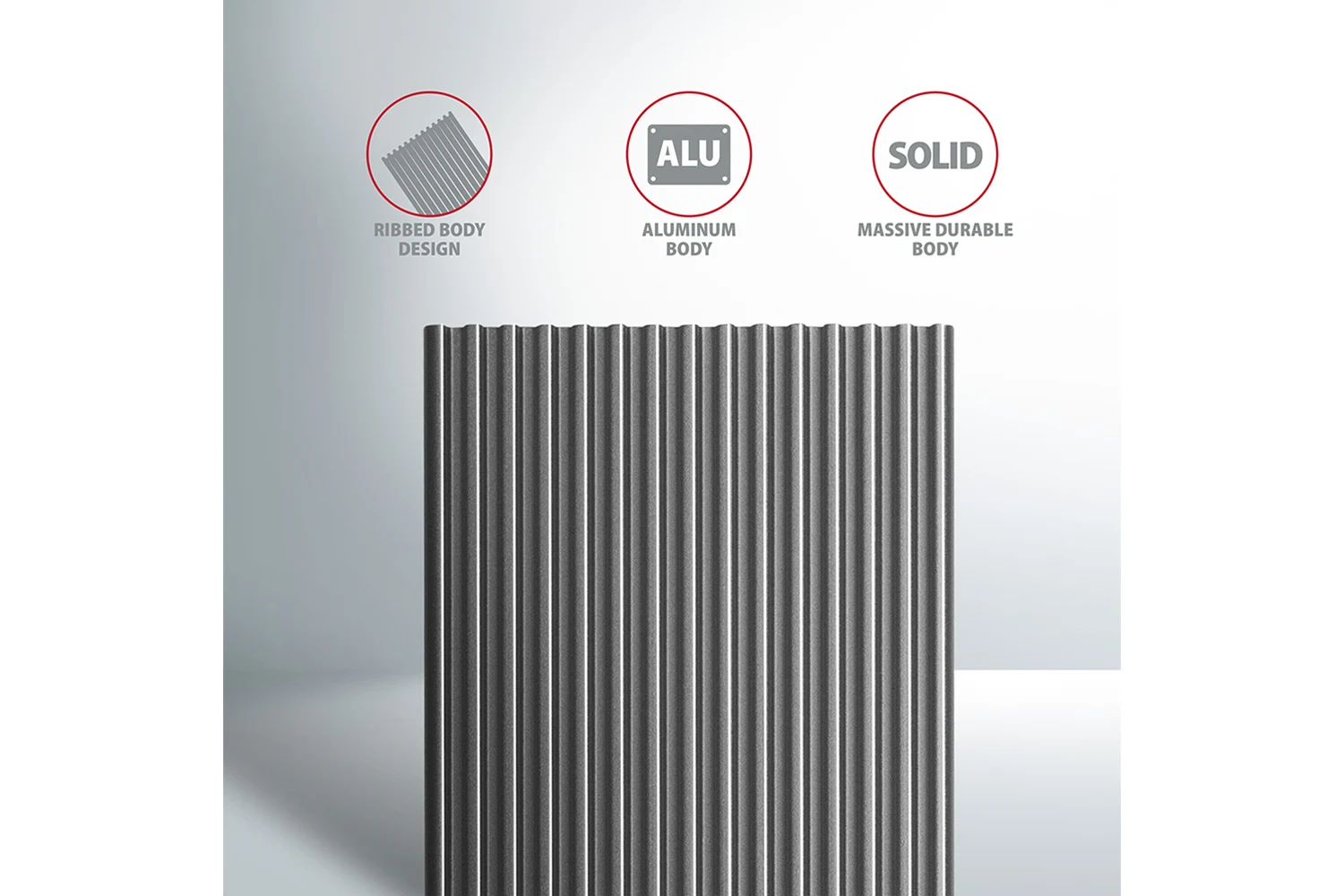

• Aluminum ribbed body, internal cooler and thermal conductive pads ensure ideal disk cooling.
• Higher box surface temperature is not a defect – thanks to the aluminum body, the heat generated by the disk operation is better drained and transferred to the environment.
• Box connected via USB 3.2 Gen 2 type C female connector.
• USB type C male / USB type C male cable length 20 cm in the package.
Other data:
• External box dimensions 112 x 44 x 15 mm.
• External box weight 110 g (without USB cable and M.2 SSD disk).
Supported operating systems:
• MS Windows 7 / 8 / 8.1 / 10 and later, Windows Server 2008 / 2012 / 2016 and later (all 32-bit and 64-bit Windows OS versions are supported), Mac OS X 10.x and higher, Linux with kernel 2.6.x and higher, Android (OS and device support required).
• Note: when Windows 7 used it is necessary to check OS support and driver availability with the M.2 SSD manufacturer.
Package contains:
• USB-C 3.2 Gen 2 external box for NVMe M.2 SSD,
• USB type C – type C cable 20 cm long,
• 3 thermal conductive pads,
• internal heatsink,
• mounting kit and screwdriver,
• multilanguage quick guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• packed in a cardboard box with clearly indicated parameters.
