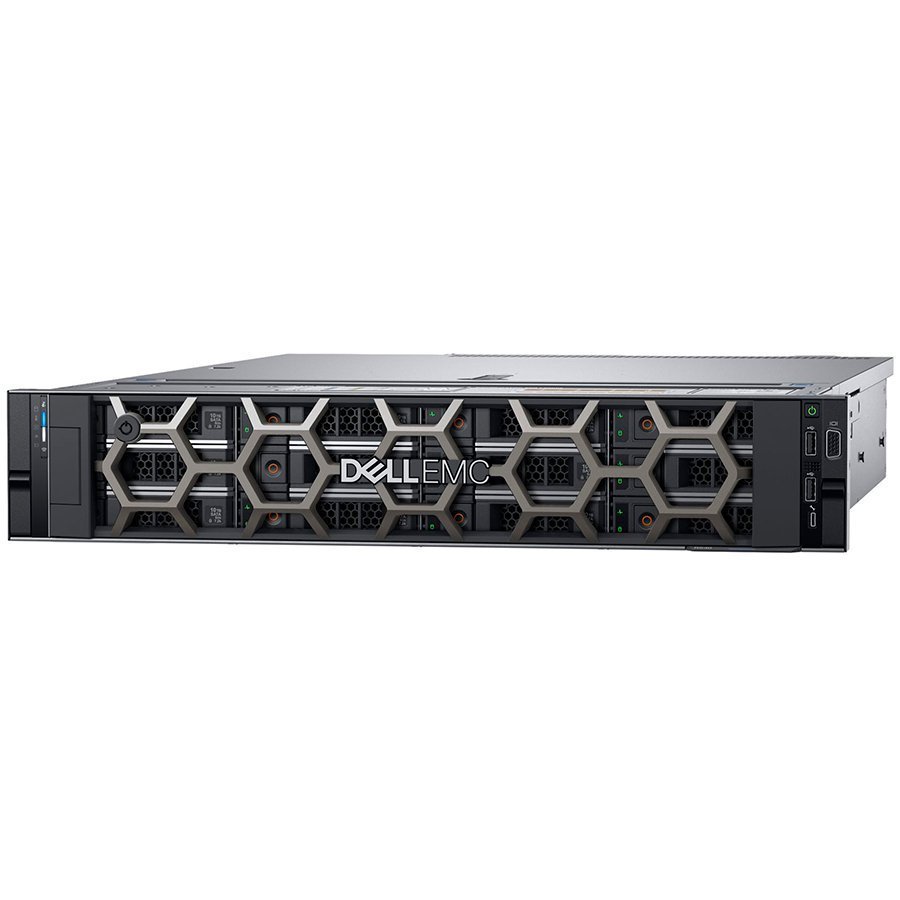

DELL EMC PowerEdge R540 w/12×3.5, Intel Xeon Silver 4210R (2.4G,10C/20T,9.6GT/s,13.75M,Turbo,HT(100W)), 2x 16GB RDIMM 3200MT/s, 1TB 7.2K SATA 512n, iDrac9 Exp, PERC H730P RAID, 1×16 FH, 3xLP slot, 1x750W, TPM 2.0, DP 1GbE LOM, 40 Mnth.NBD

System Type: Server
System Form Factor: Rack-Mountable
Supported CPUs: Xeon Scalable Processors
CPU: Intel Xeon Silver 4210R Processor
Internal Clock Rate: 2.4 GHz (up to 3.2 GHz)
CPU Core Quantity: 10
Threads Quantity: 20
Max. CPU Bus Clock Rate: 9.6 GT/sec
CPU podnožje: Socket 3647
CPU Installed Quantity: 1
CPU Maximum Quantity Supports: 2
CPU Cache Size: 13.75 MB
Features: Supports 14 nm Processors
Quantity of Mainboards Supported: 1
Vrsta memorije: DDR4 SDRAM
Memory Form Factor: DIMM 288-pin
Memory Speed: 3200MHz(PC4-25600)
Provides Error Checking Method: ECC
Installed System Memory Storage Capacity: 32 GB
Maximum Installable System Memory Storage Capacity: 1 TB
Memory Slot Total Quantity: 16
Memory Features: Registered
Plug-in-card: RAID Controller:
PERC H730P 2 GB
Supports: Level 0, Level 1, Level 10, Level 5, Level 50, Level 6, Level 60
SAS/SATA
Remote Management Controller:
iDRAC9 Express Micro-USB (type AB)
Hard Disk Drive: 1 TB, 7200 rpm, SATA III-600
Networking Form Factor: Integrated
LAN: Gigabit Ethernet
Data Link Protocol Supports: Gigabit Ethernet/Fast Ethernet/Ethernet
Number of 3.5-inch Hot-Swap Drive Bays: 12
Number of Slim External Drive Bays: 1
LAN: 2 (RJ-45)
USB 2.0: 2 (USB 2.0 (type A))
USB 3.0: 2 (USB 3.0 (type A))
Serial: 1 (9-pin)
VGA: 2 (15-pin D-sub)
Power Device Type: Power Supply – redundant
Power Device Location: Internal
Input Frequency: 50/60 Hz
Power Device Installed Quantity: 1; Redundant (1+0)
Power Device Maximum Quantity Supports: 2
Maximum Output Power: 750 W
External Color: Black
Standard Rack Height: 2 U
Maximum Operating Ambient Temperature: 35 °C
Maximum Operating Humidity: 80 %
Minimum Operating Ambient Temperature: 10 °C
Minimum Operating Humidity: 10 %
Max. Altitude Operating: 3048 m
Height (mm): 86.8 mm
Depth (mm): 703.76 mm
Width (mm): 434 mm
Nominal Weight: 29.68 kg
Warranty Products Returnable: Yes
Warranty Term (month): 40 month(s)
Warranty validation Criteria: Serial Number
Warranty Term Notes: Next Business Day
Pack Weight Brutto (kg): 36 kg
Pack Weight Netto (kg): 29 kg
Pieces in pack: 1
Box Weight Brutto (kg): 36 kg
Retail Packaging Net Weight Carton: 0.5 kg
Retail Packaging Net Weight Plastic: 0.5 kg
Packs in Box: 1
Package Type: Box
