MSI PRO B650M-A WIFI, matična ploča - Slika 2

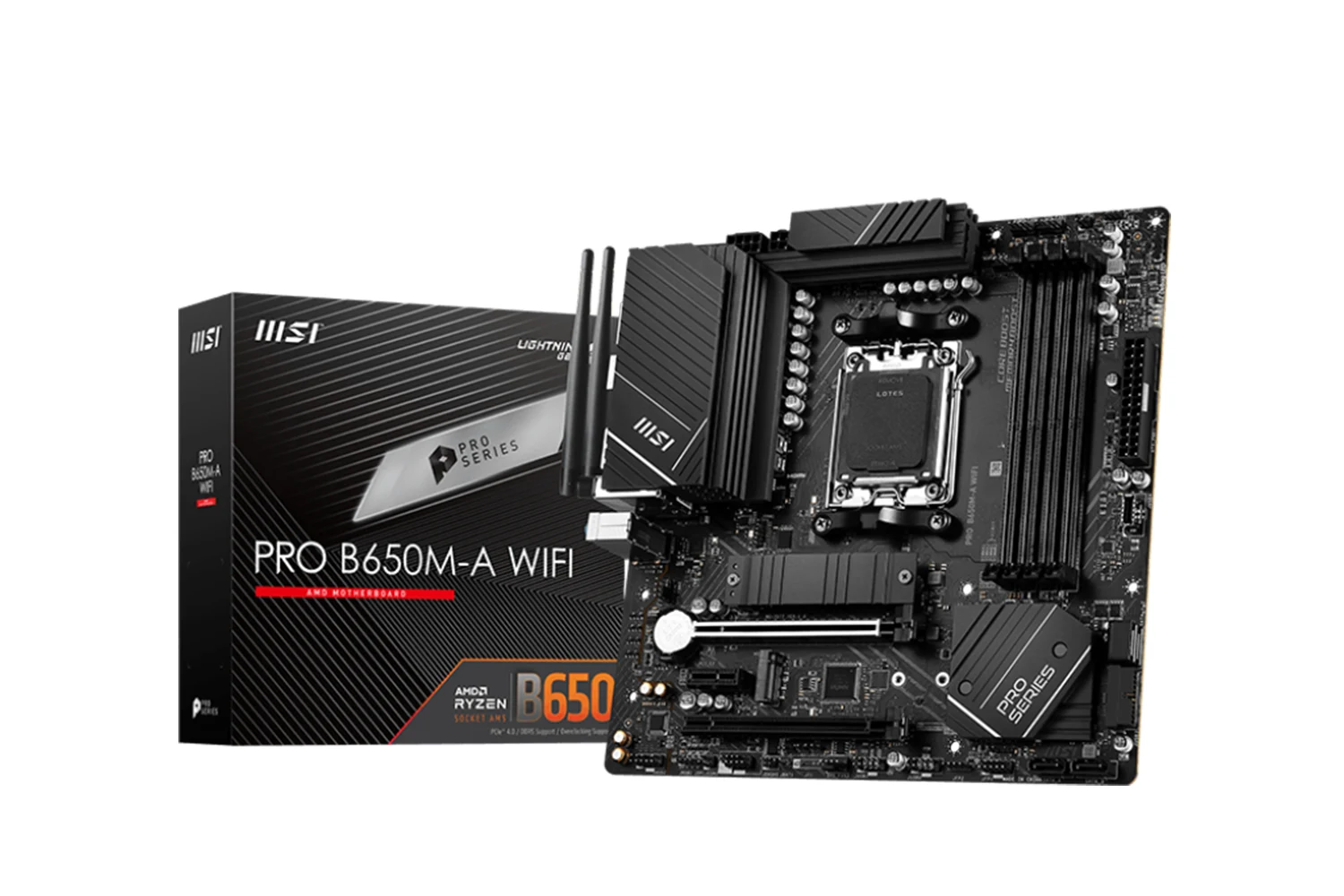

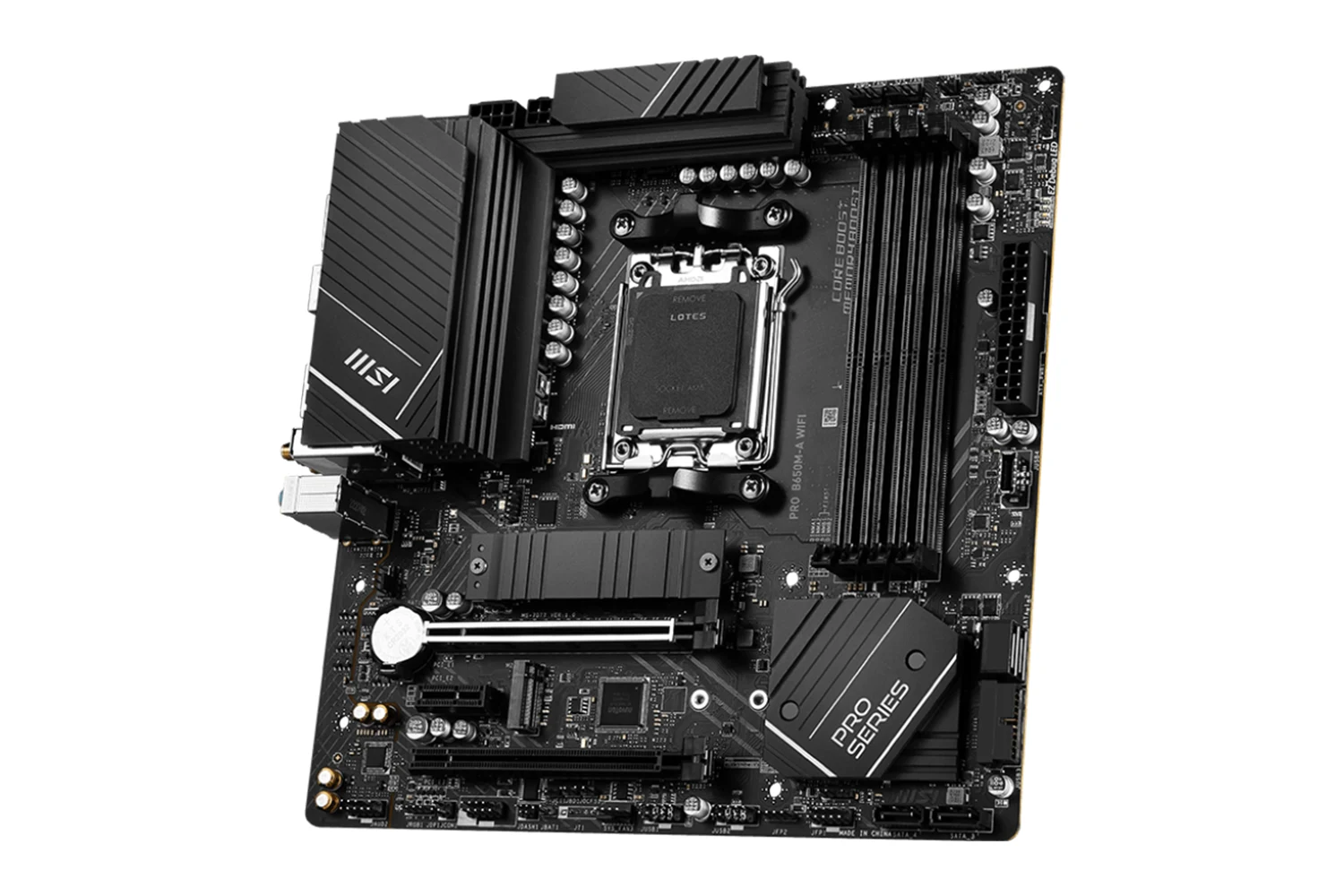

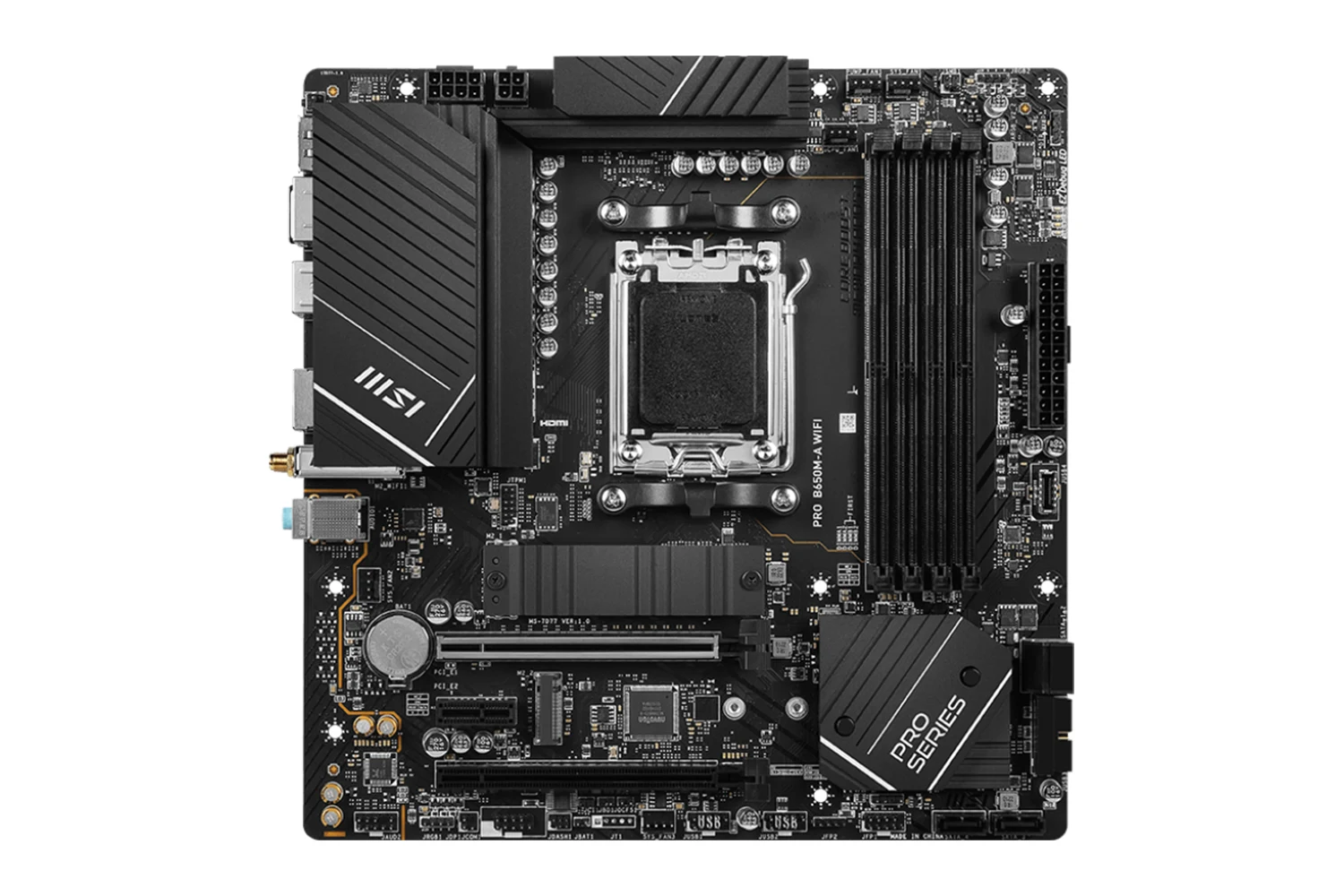

MSI PRO B650M-A WIFI, matična ploča

Podržava Ryzen™ 7000 seriju procesora
Podrška za DDR5 memoriju do 6400(OC) MHz
PCIe 4.0 podrška, i 2x Gen4 x4 M.2 NVME
Realtek^® 2.5GbE LAN, AMD Wi-Fi 6E, Bluetooth 5.2
Audio Boost: Nagradite svoje uši studijskom kvalitetom zvuka
8+2+1 fazni dizajn dostavljanja snage

Naša najniža cijena:

232,02 € s PDV-om

* Cijena za gotovinsko plaćanje

Brand

Redovna cijena: 259.24 €

Proizvod nije na skladištu

Podrška kupcima

+385 91 527 6030 ili info@megabajt.hr

Brza dostava

Brza dostava putem DPD-a ili Overseasa

Podijelite svoju kupovinu

Mogućnost plaćanja do 36 rata

Opis
Dodatne informacije

Chipset	AMD B650
CPU	Supports AMD Ryzen™ 7000 Series Desktop Processors
CPU	Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 128GB
	Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
	Max. overclocking frequency:
	• 1DPC 1R Max speed up to 6400+ MHz
	• 1DPC 2R Max speed up to 5800+ MHz
	• 2DPC 1R Max speed up to 6000+ MHz
	• 2DPC 2R Max speed up to 4000+ MHz

	Supports Dual-Channel mode
	Supports non-ECC, un-buffered memory
	Supports AMD EXPO
Onboard Graphics	Support HDMI^TM 2.1, maximum resolution of 4K 60Hz*
	Supports DP1.4, maximum resolution of 4K 60Hz*
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
	1x HDMI
	1x DisplayPort
Slot	2x PCI-E x16 slot (Qty)
	1x PCI-E x1 slot (Qty)
	PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage	2x M.2 (Qty)
	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	4x SATA 6G (Qty)
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
RAID	Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front)
	4x USB 3.2 Gen1 Type A (Rear)
	2x USB 3.2 Gen1 Type A (Front)
	4x USB 3.2 Gen2 Type A (Rear)
	1x USB 3.2 Gen2 Type C (Front)
LAN	Realtek^® 8125BG 2.5G LAN
WIRELESS LAN & BLUETOOTH	AMD Wi-Fi 6E
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX
	Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
	Supports 802.11 a/ b/ g/ n/ ac/ ax
	Supports Bluetooth^® 5.2**
	* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
	** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek^® ALC897 Codec
Audio	7.1-Channel High Definition Audio
Internal IO	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Pump Fan
	3x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	1x Tuning Controller connector(JDASH)
	2x Addressable V2 RGB LED connector (JARGB_V2)
	2x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 3.2 Gen1 Type A ports
	1x USB 3.2 Gen2 Type C ports
LED FEATURE	4x EZ Debug LED

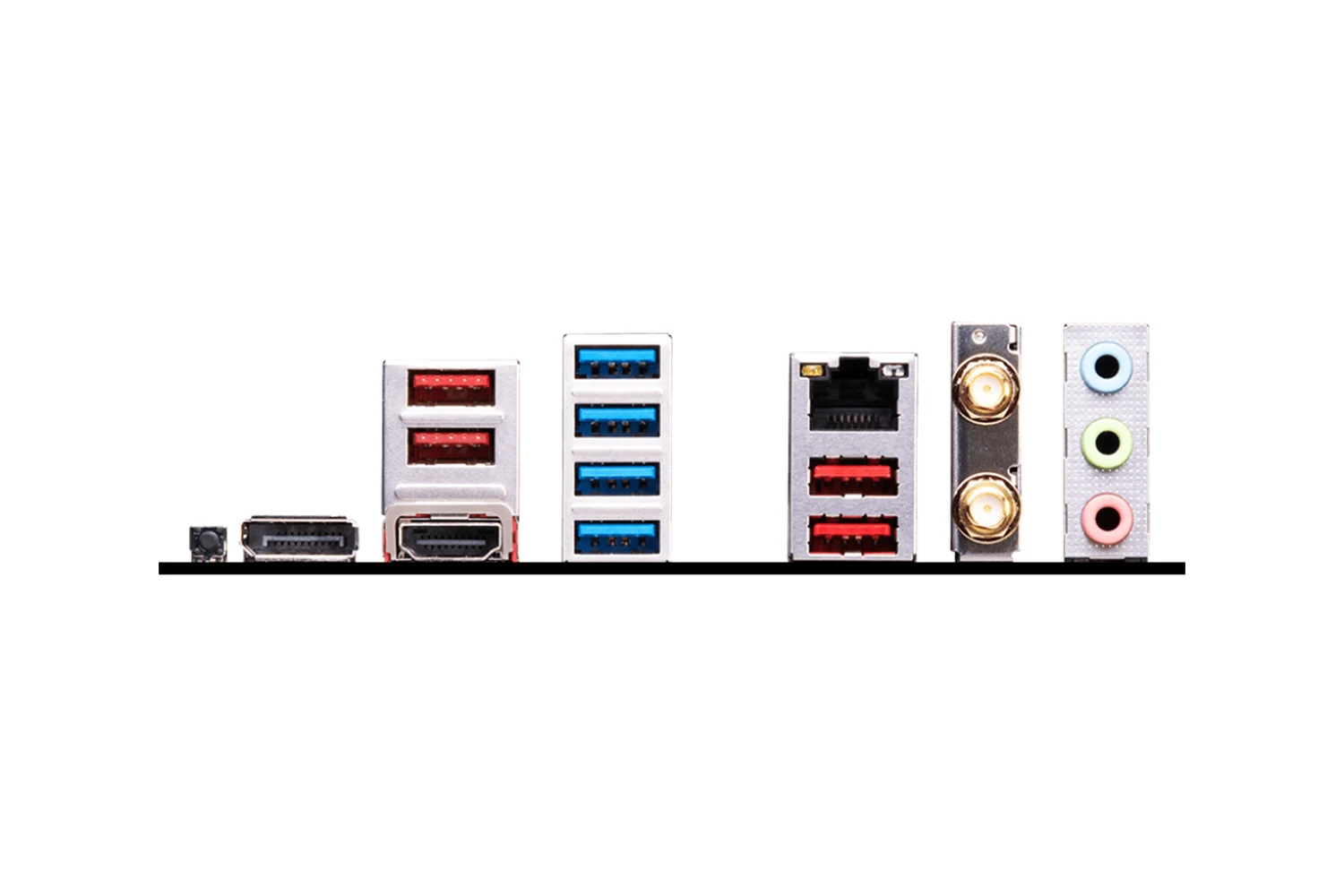

BACK PANEL PORTS	1. USB 3.2 Gen 2 10Gbps (Type-A)
	2. USB 3.2 Gen 1 5Gbps (Type-A)
	3. 2.5G LAN
	4. Wi-Fi / Bluetooth
	5. Audio connectors
	6. Flash BIOS Button
	7. DisplayPort
	8. HDMI™
	9. USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
PCB Info	mATX
PCB Info	243.84mmx243.84mm

Dodatne informacije

Socket matične ploče	AM5
Čipset matične ploče	AMD B650
Veličina matične ploče	Micro ATX
LAN Brzina	2.5 gbit
Dodatne značajke matične ploče	Bluetooth, M.2 Slot, PCI Express 4.0 x16, Wi-Fi
