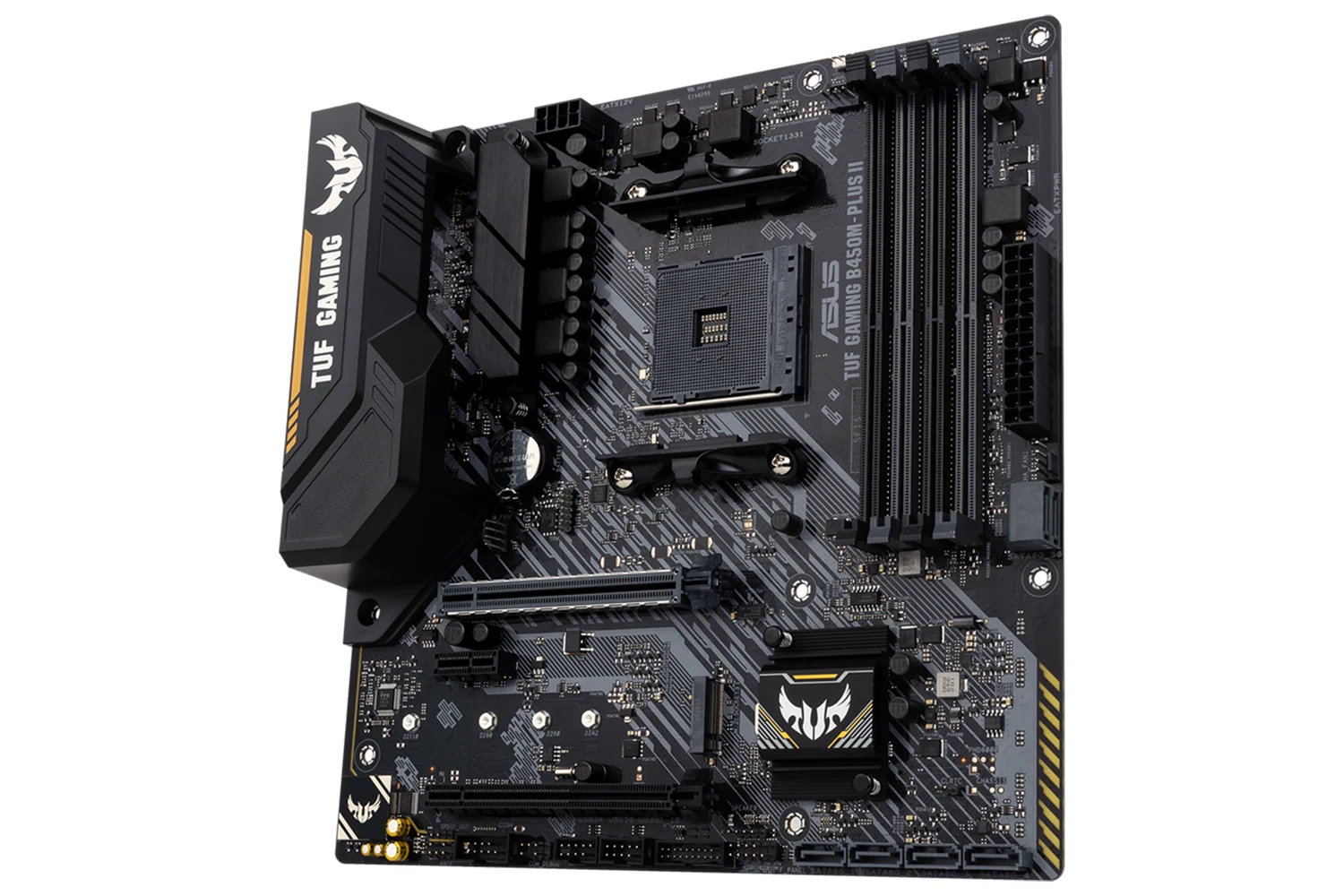

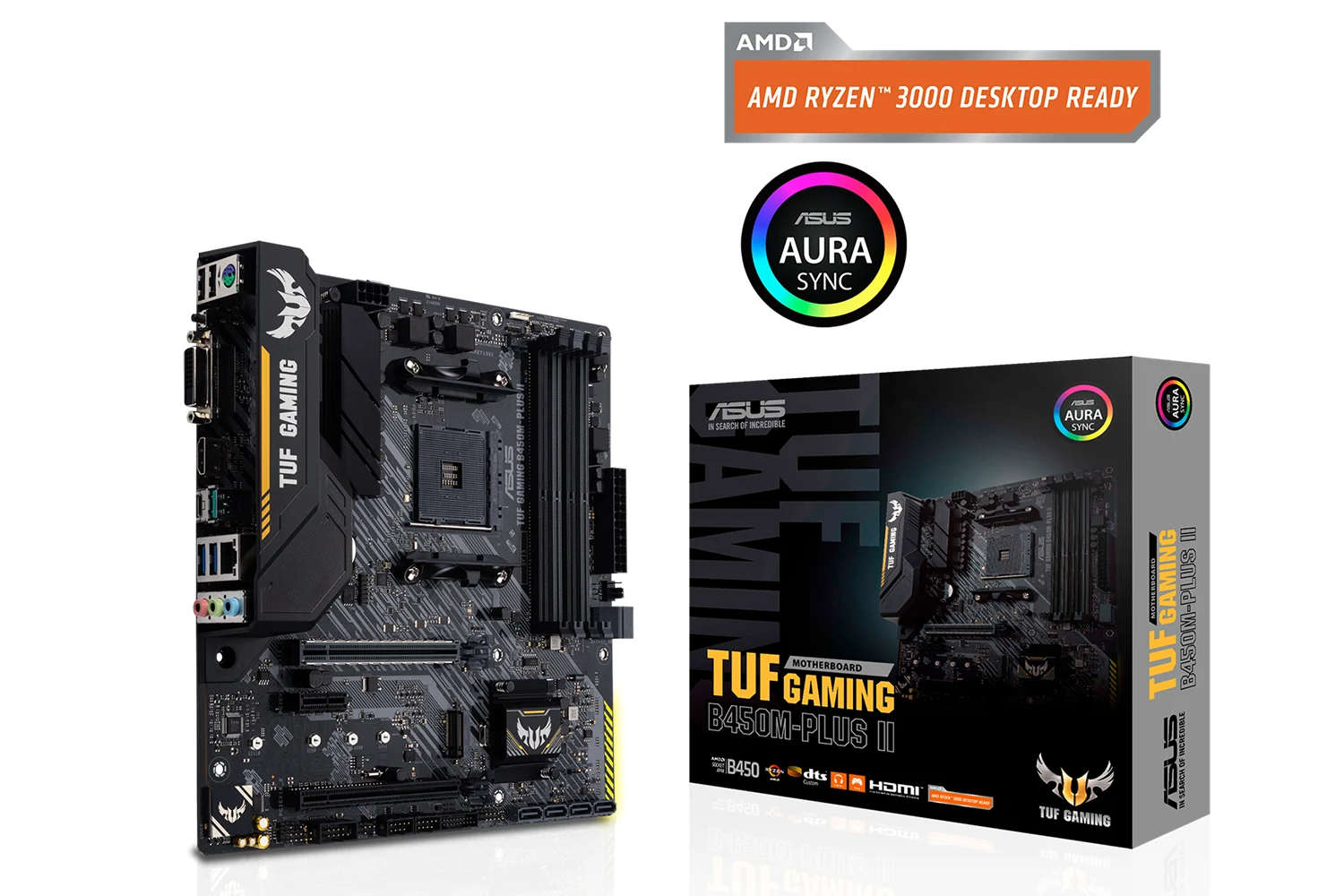

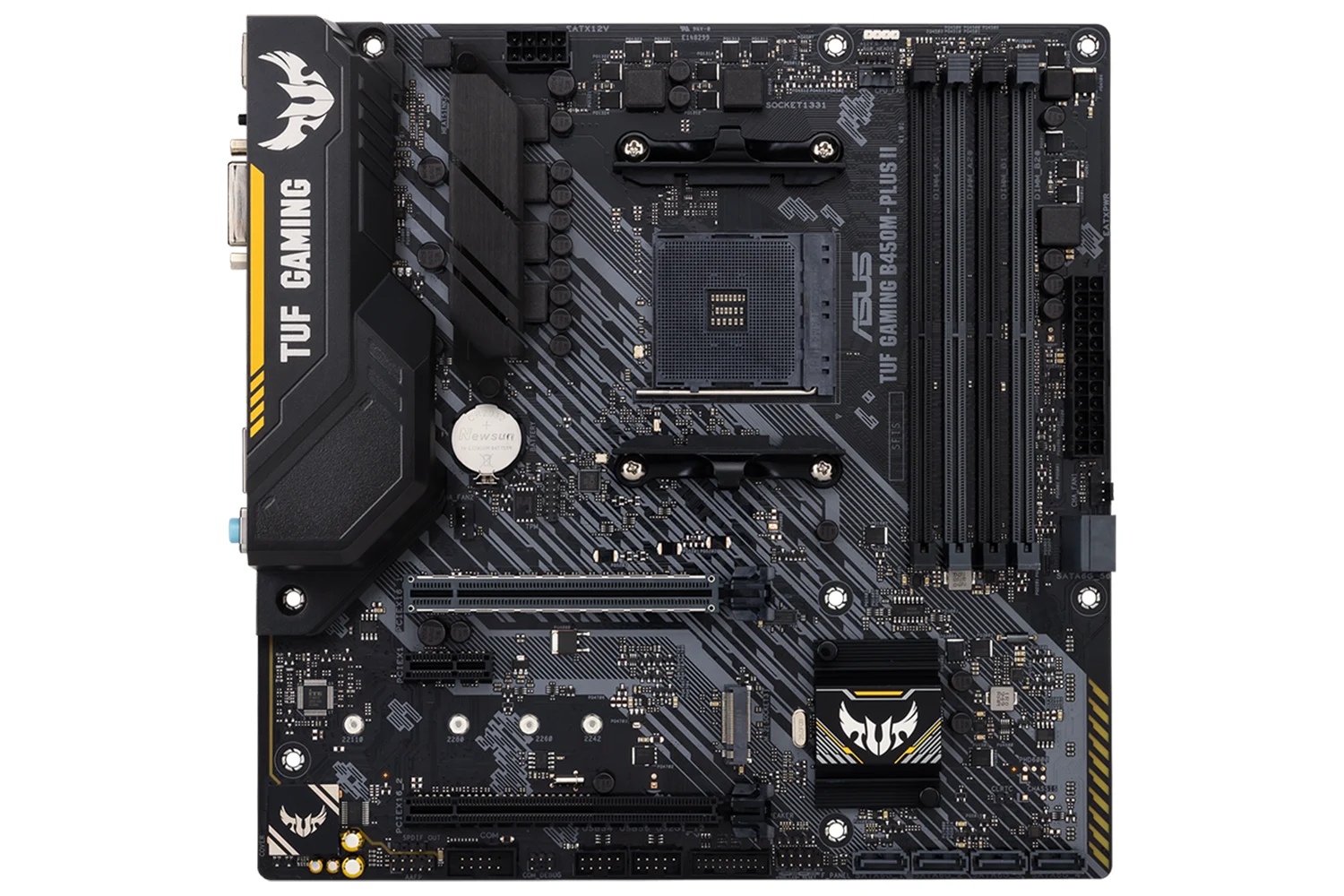

Socket: AMD AM4
Za procesore: AMD RYZEN
Veličina: mATX format 24.4 cm x 24 cm
Čipset: AMD B450
Memorija: 4 x DDR4 DIMM ECC/non-ECC (do 4400(O.C) MHz) do ukupno 128GB kapaciteta, dual channel podrška
Grafička kartica: DA, preko APU
RAID: DA (0,1,10)
Slotovi za proširenje: 3rd/2nd/1st Gen AMD Ryzen™ Processors – 1 x PCIe 3.0/2.0 x16 (x16 mode), 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors – 1 x PCIe 3.0/2.0 x16 (x8 mode), Athlon™ with Radeon™ Vega Graphics Processors – 1 x PCIe 3.0/2.0 x16 (max at x4 mode), AMD B450 chipset – 1 x PCIe 2.0 x16 (x4 mode), 1 x PCIe 2.0 x1
Mrežna kartica: Realtek RTL8111H LAN chip (10/100/1000Mbit) s ASUS LANGuard
Zvučna kartica: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
Unutarnji priključci:
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x Aura RGB Strip Header
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector

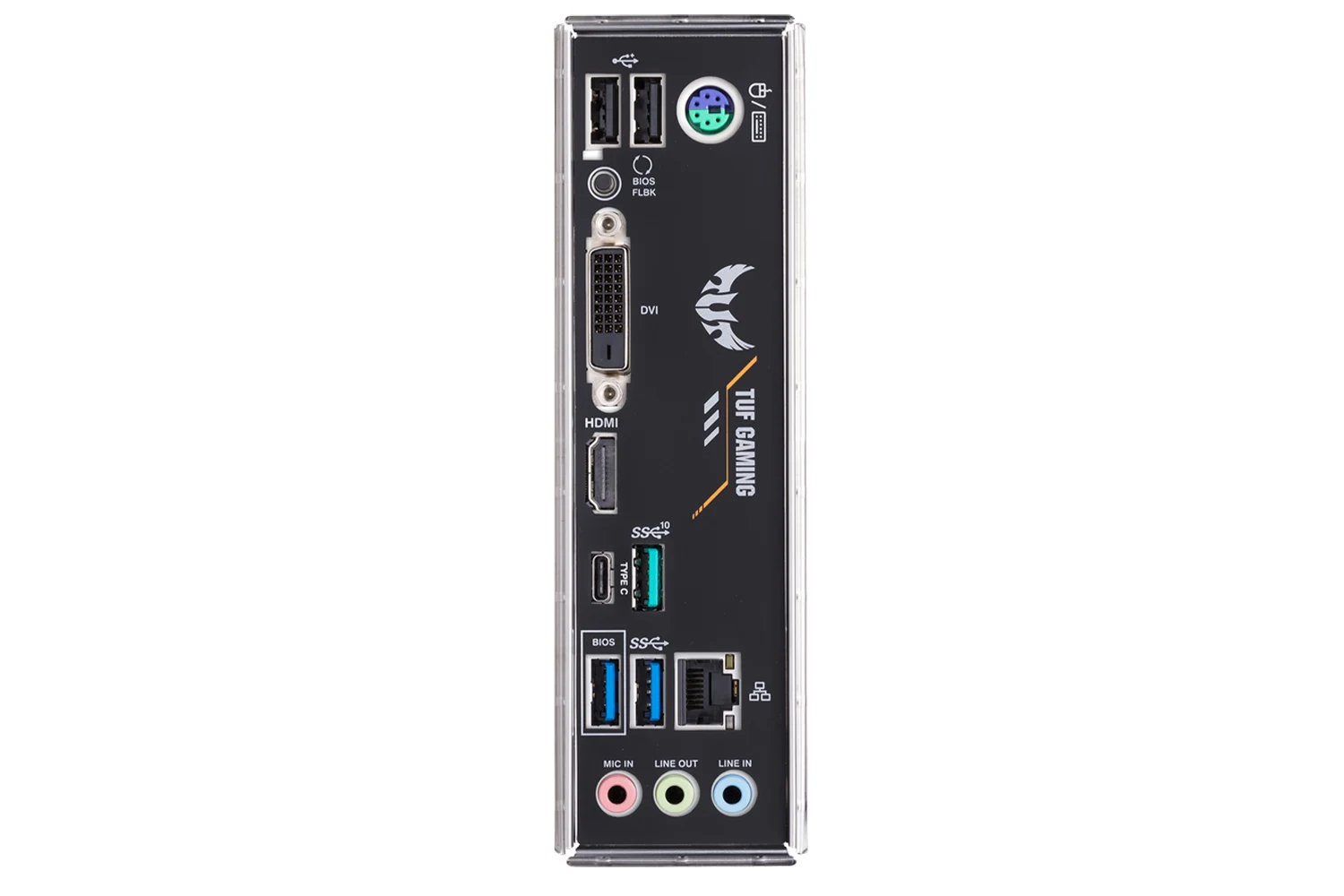

Vanjski priključci:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.2 Gen 2 (teal blue)Type-A,
2 x USB 3.2 Gen 1 (blue) Type-A
1 x USB 3.2 Gen 1 (black) Type-C
2 x USB 2.0
3 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)
Jamstvo: 36 mjeseci
EAN: 4718017927185
